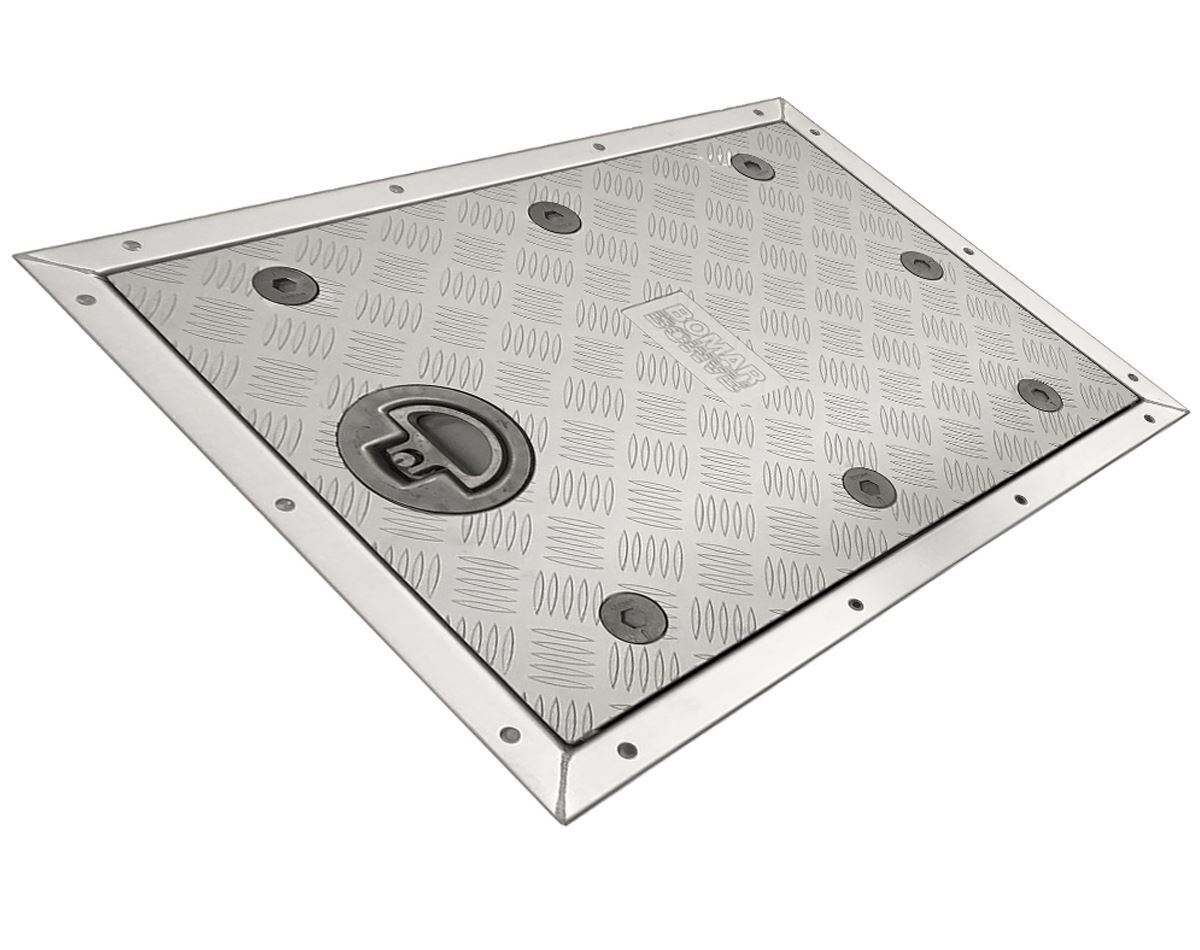

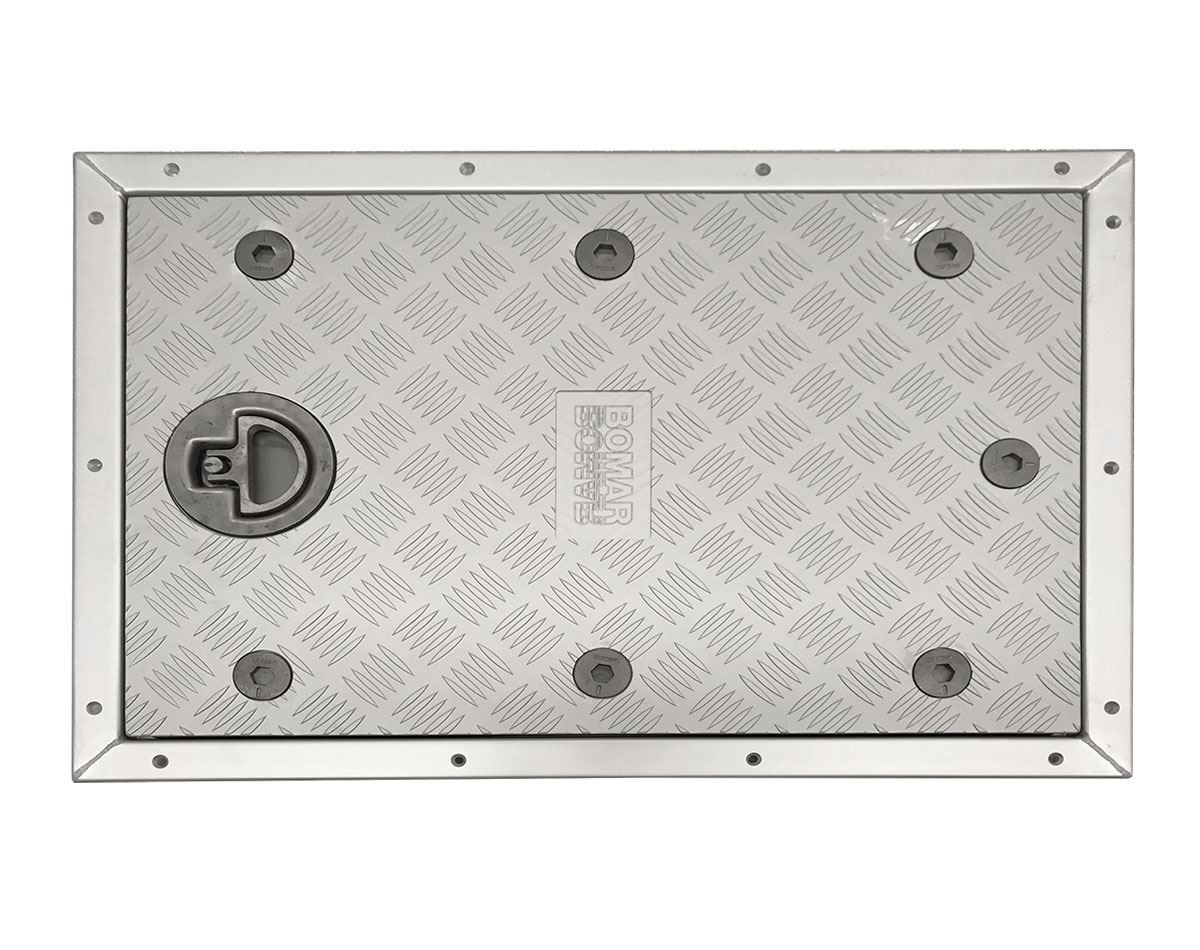

These Bomar Access Hatches feature a high-quality marine grade, anodised aluminium tread plate cover along with 316 grade stainless steel hardware.

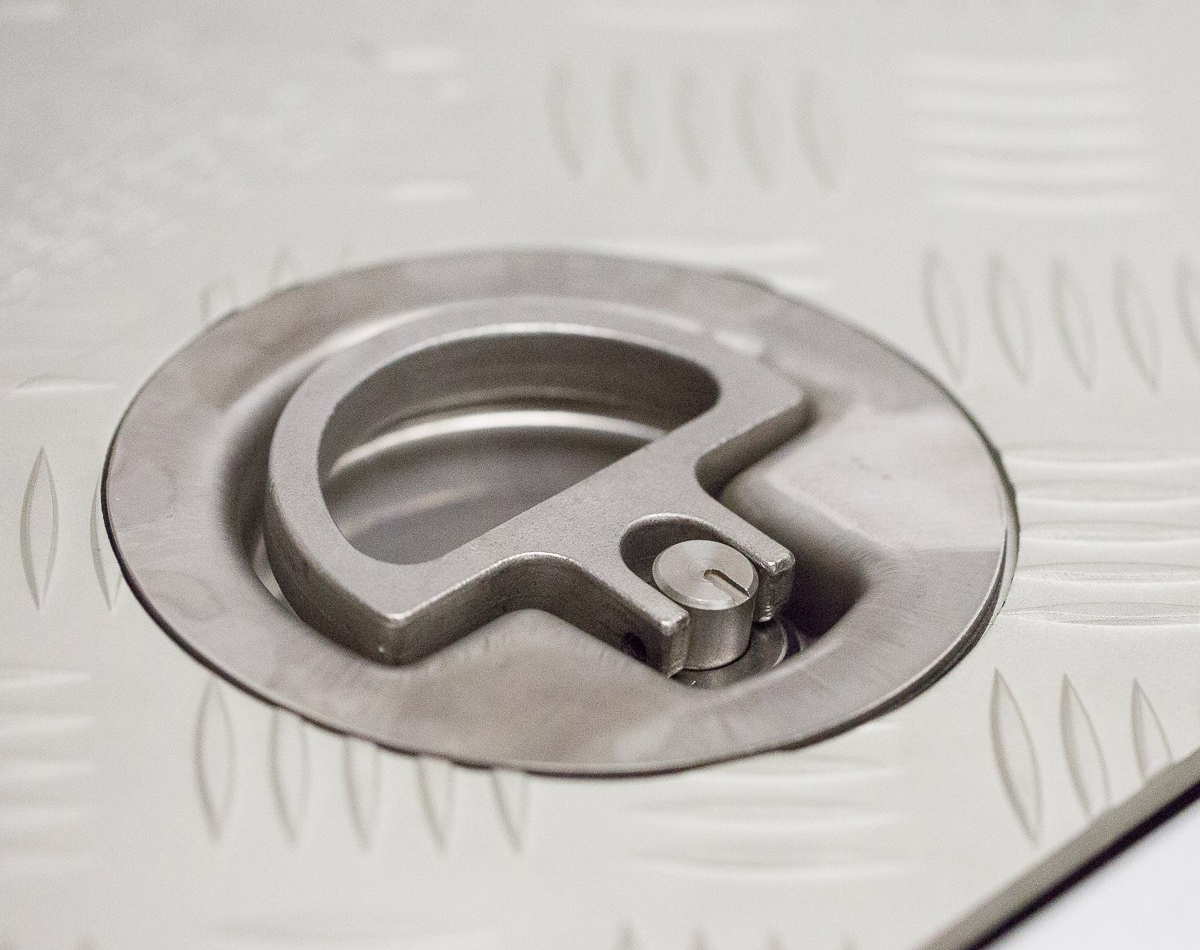

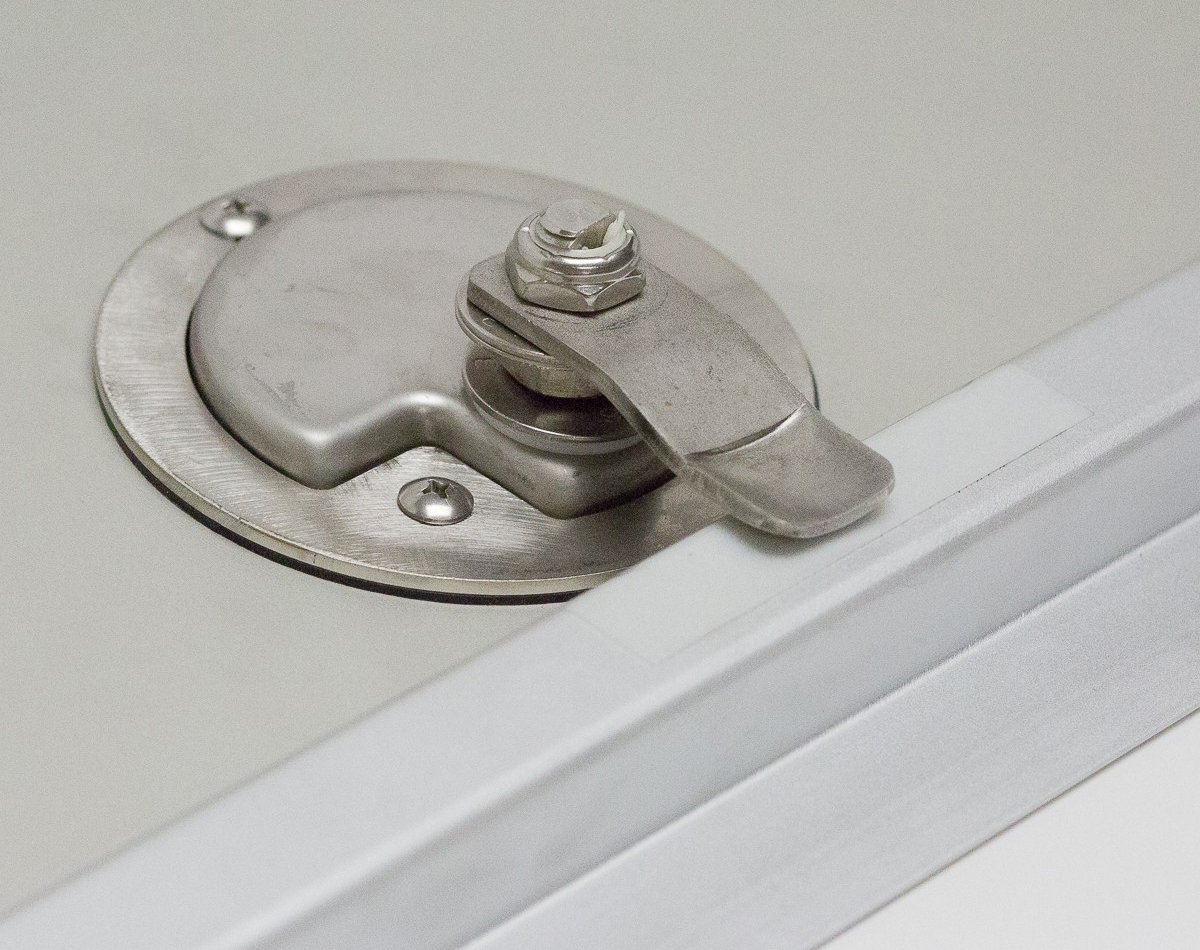

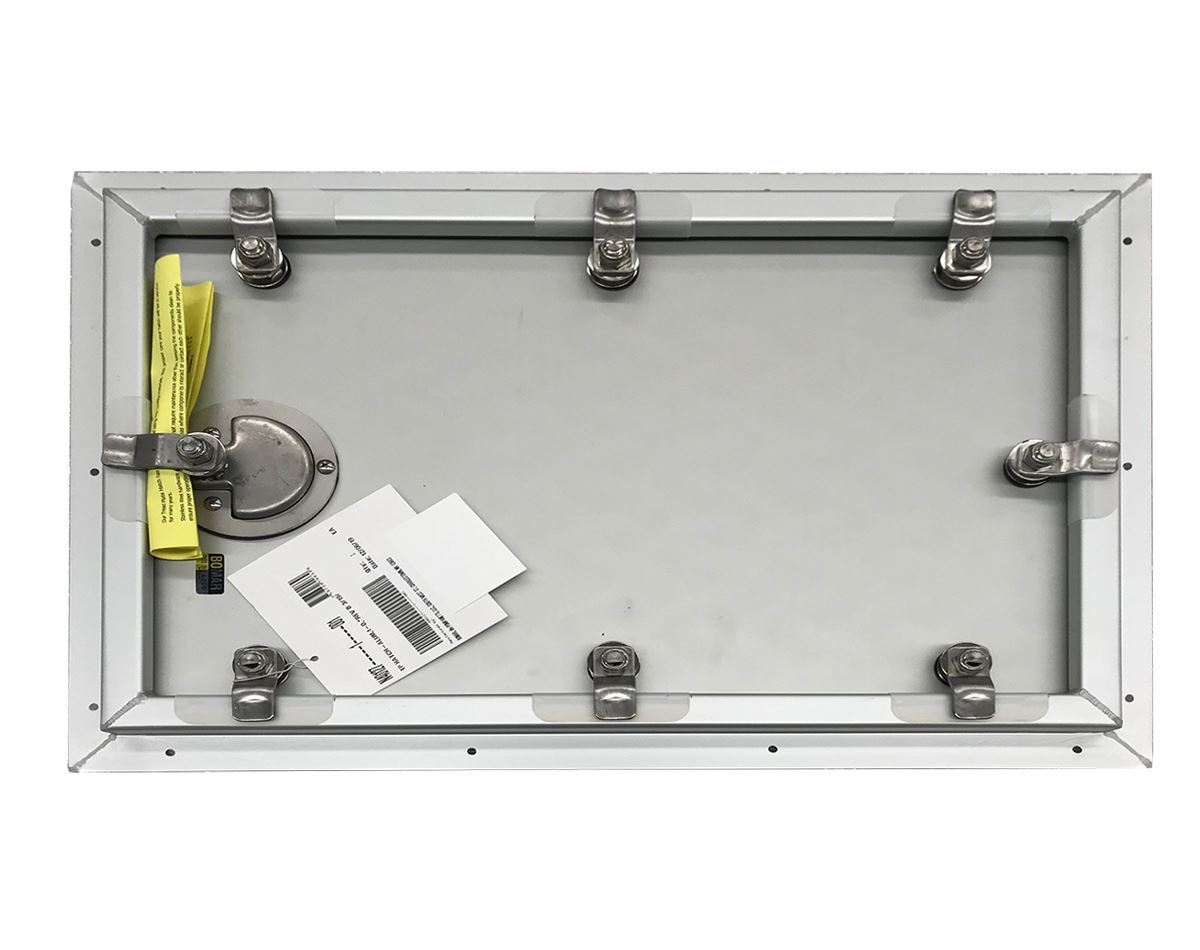

These include a 316 grade stainless steel dog fastener with latch position indicator as well as a flush 'D' handle for easy removal and replacement of the hatch cover. All dog fasteners are recessed into the hatch cover so chains, cables or rope will not snag on them.

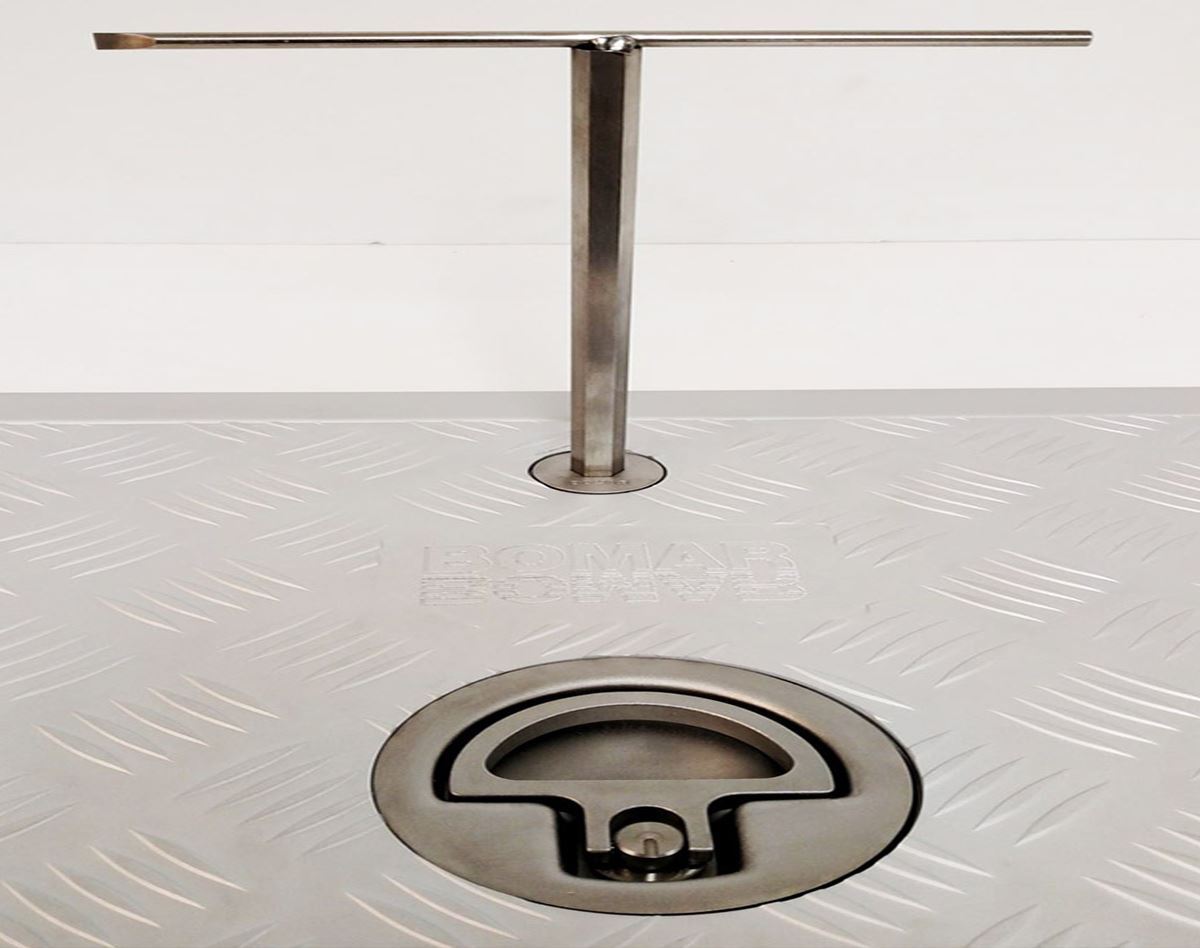

The 316 grade stainless steel hex drive tool handle (sold separately) features a blunt end and a screwdriver top to break the ice or to remove any debris from the dogs of 'D' handle. See related products: Bomar Opening Key for Access Hatch Aluminium Tread Plate

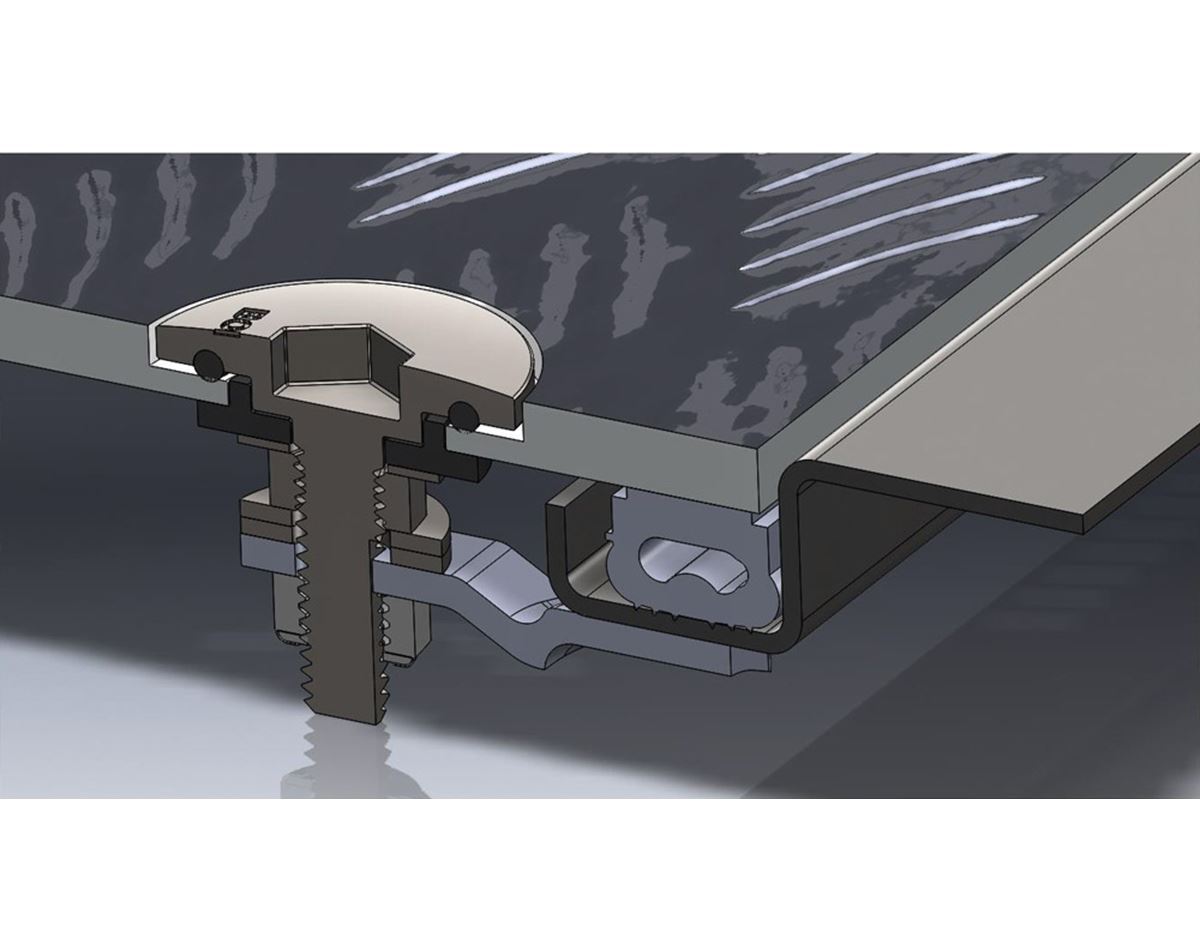

The Delrin bushing allows for smooth dog operation that also isolates the stainless dog fasteners from the aluminium plate.
Its' compressed gasket will deflect against the frame walls to keep the cover centred in the frame opening.
The multiple point loading gasket profiles will resist leakage even under dynamic water pressures and the return bend in the frame profile will stop over-compression of the gasket if heavy loads are placed on the hatch cover.
* 316 grade stainless steel hex drive tool handle: Bomar Opening Key for Access Hatch Aluminium Tread Plate
* Optional on request: Heavy 12-gauge 316 stainless steel fully welded frame

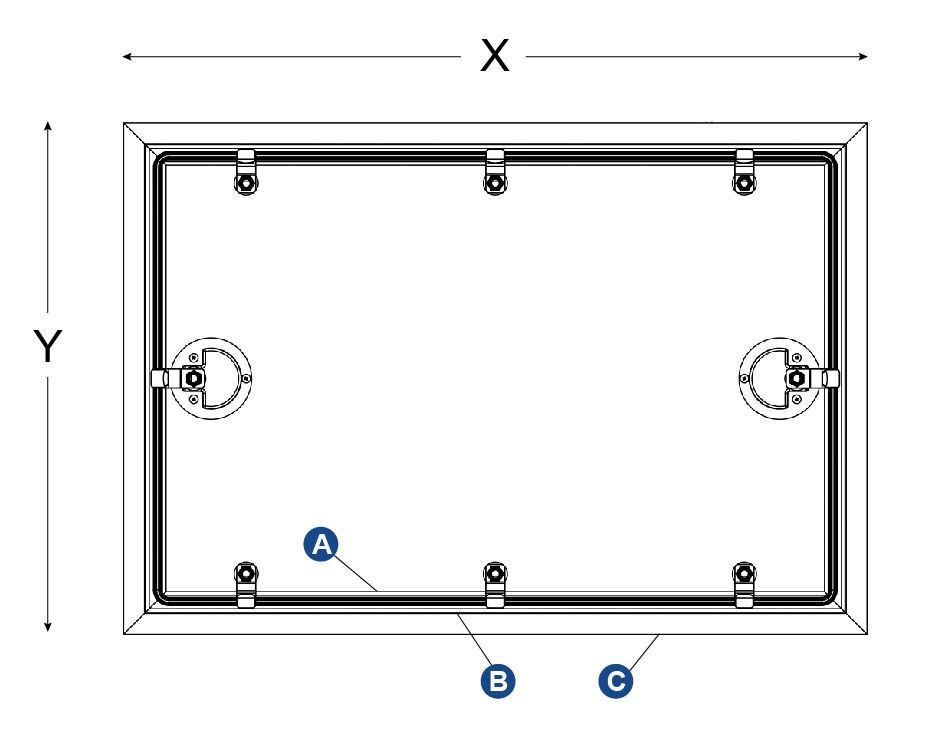

|SKU||MPN||Opening X x Y (mm)||Cut-Out X x Y (mm)||O.D. of Deck Flange X x Y (mm)|
|1120016||N40127||565 x 362||622 x 419||677 x 474|
|1120017||N40128||717 x 565||774 x 622||830 x 677|
|1120018||N40129||260 x 260||317 x 317||372 x 372|
|1120019||N40130||508 x 254||565 x 311||620 x 366|
|1120020||N40131||717 x 463||775 x 521||830 x 576|
|1120021||N40132||565 x 565||622 x 622||677 x 677|
|1120022||N40133||870 x 565||927 x 622||982 x 677|
