Ultraflex MasterDrive Power Assisted Steering System

On orders over $150*

Free Shipping * Terms & Conditions Apply

Call and let us help

The MasterDrive is a power-assisted steering system operated by an electrohydraulic pump. It delivers fingertip control regardless of speed or torque conditions, ensuring full control of the boat both during manoeuvres and in bad sea conditions.

It is comprised of three main components - a helm, a power unit and a user interface. The user interface (which is located on the boat dashboard) allows the skipper to select 3 different power modes according to the boating conditions:

Fishing
Cruise
MasterDrive (TM)

This kit can only be installed as an add-on to the Ultraflex SilverSteer hydraulic steering system, so if your boat does not already have SilverSteer installed, you will need to purchase that separately, and it will need to be installed at the same time as the MasterDrive.

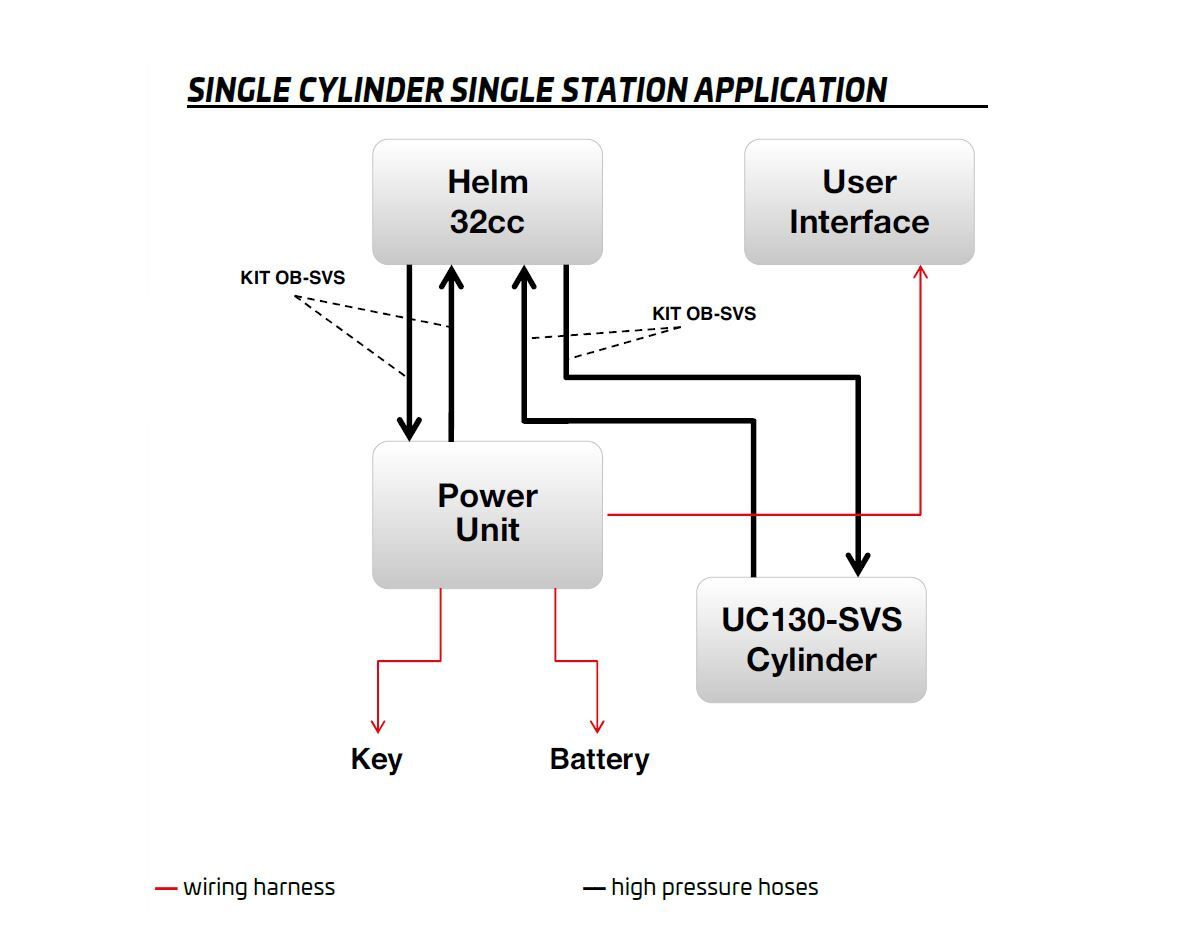

Ulatraflex recommends the SilverSteer + MasterDrive combination for boat engine/s with a combined max horsepower of more than 300hp. This MasterDrive kit is for a boat with a single steering station and single steering cylinder. It must only be used with single UC 128-SVS cylinder systems.

Product Features:

Eliminates torque at the steering wheel
Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED)
4.1 wheel turns lock-to-lock
Automatically reverts to manual mode in case of power loss
High-efficiency, low-Amp draw
The system is always on, allowing immediate control in any sea conditions
Equipped with safety switch ON/OFF (SMART BUTTON)
Suitable for use with autopilot
Low noise
Voltage: 12VDC
CE marked in conformity with ABYC P21, ISO 10592 safety standards
Ignition protected (SAEJ-1171 and UNI EN 28846)

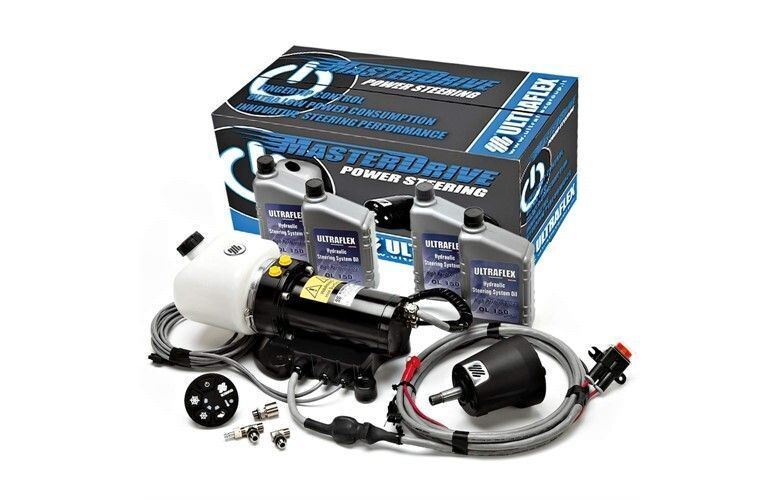

Kit contains:

1 x UH front-mount Master Helm
- 32cc displacement size (1.95 cubic inches)
1 x UPMD power unit, with 4.5m (15ft) wiring harness included
1 x UCMD user interface
4 x 1L bottles of hydraulic oil

SKU	1260204
Brand	Ultraflex
Shipping Weight	23.9500kg
Shipping Width	0.370m
Shipping Height	0.300m
Shipping Length	0.580m
Unit Of Measure	EA
