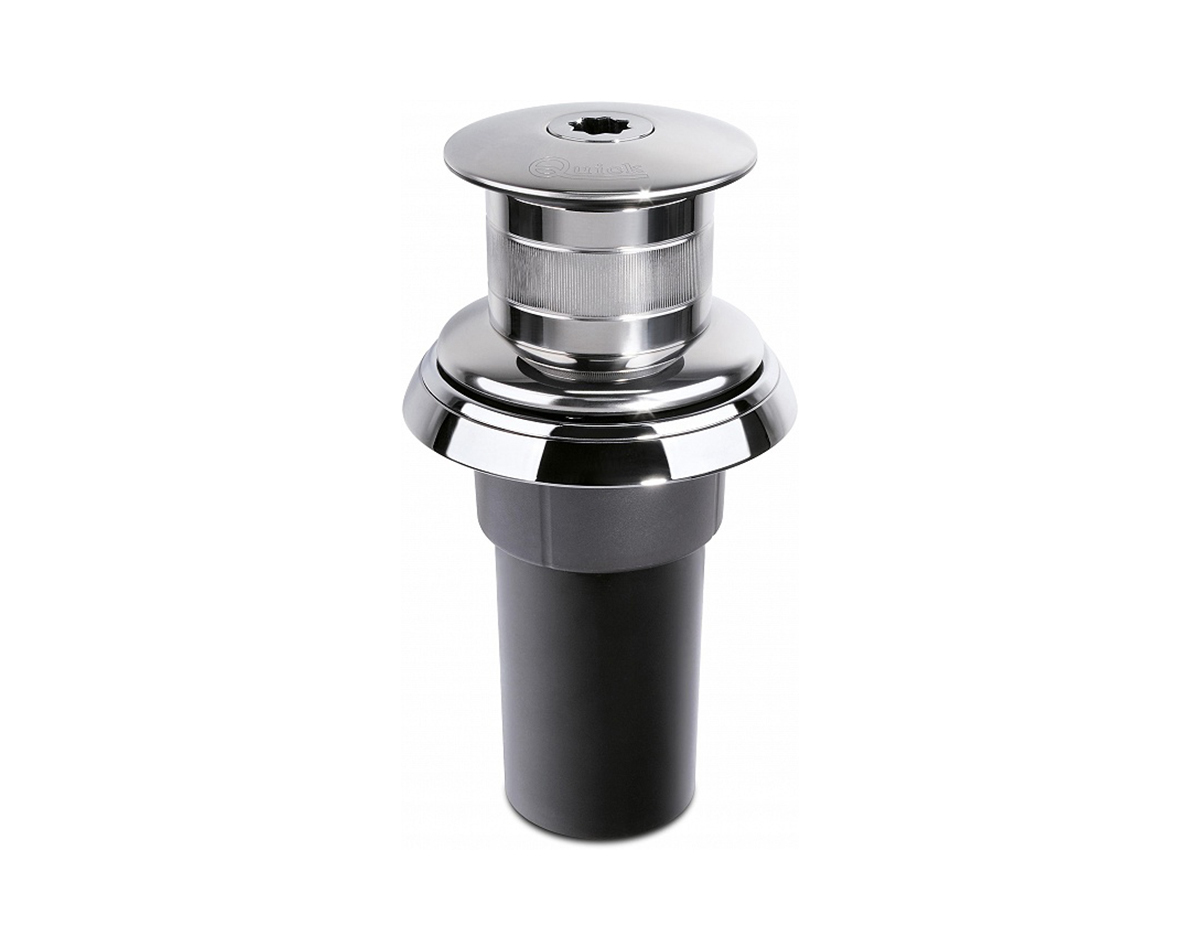

The Quick Totem TM3 is a rope only drum capstan that has a vertical watertight motor for easy and fast drop-in installation, perfect for boats with limited deck space.
Equipped with an epicyclical gearbox that provides much higher efficiency, the Totem series is also suitable for general line hauling applications on larger boats.
The Quick Totem TM3 capstan has a vertical watertight motor for easy and fast drop-in installation, perfect for boats with limited deck space.

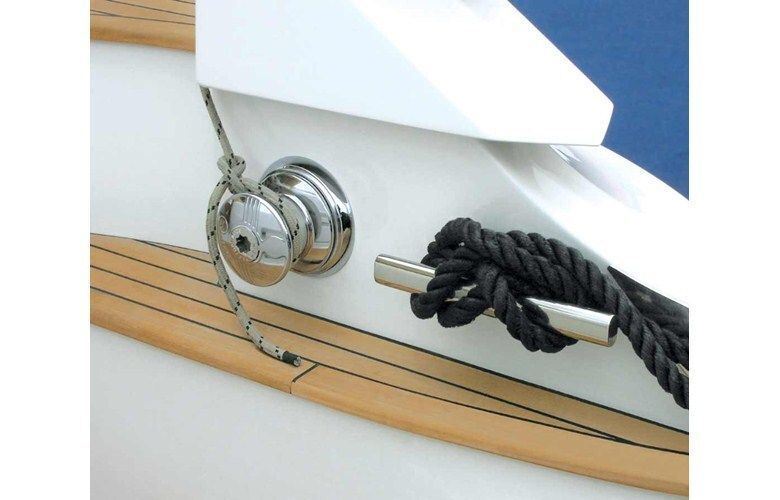

Suitable for vertical or horizontal mounting, this rope only drum anchor winch is equipped with an epicyclical gearbox that provides much higher efficiency (40% compared to
equivalent traditional gearboxes).
Also suitable for general line hauling applications on larger boats.

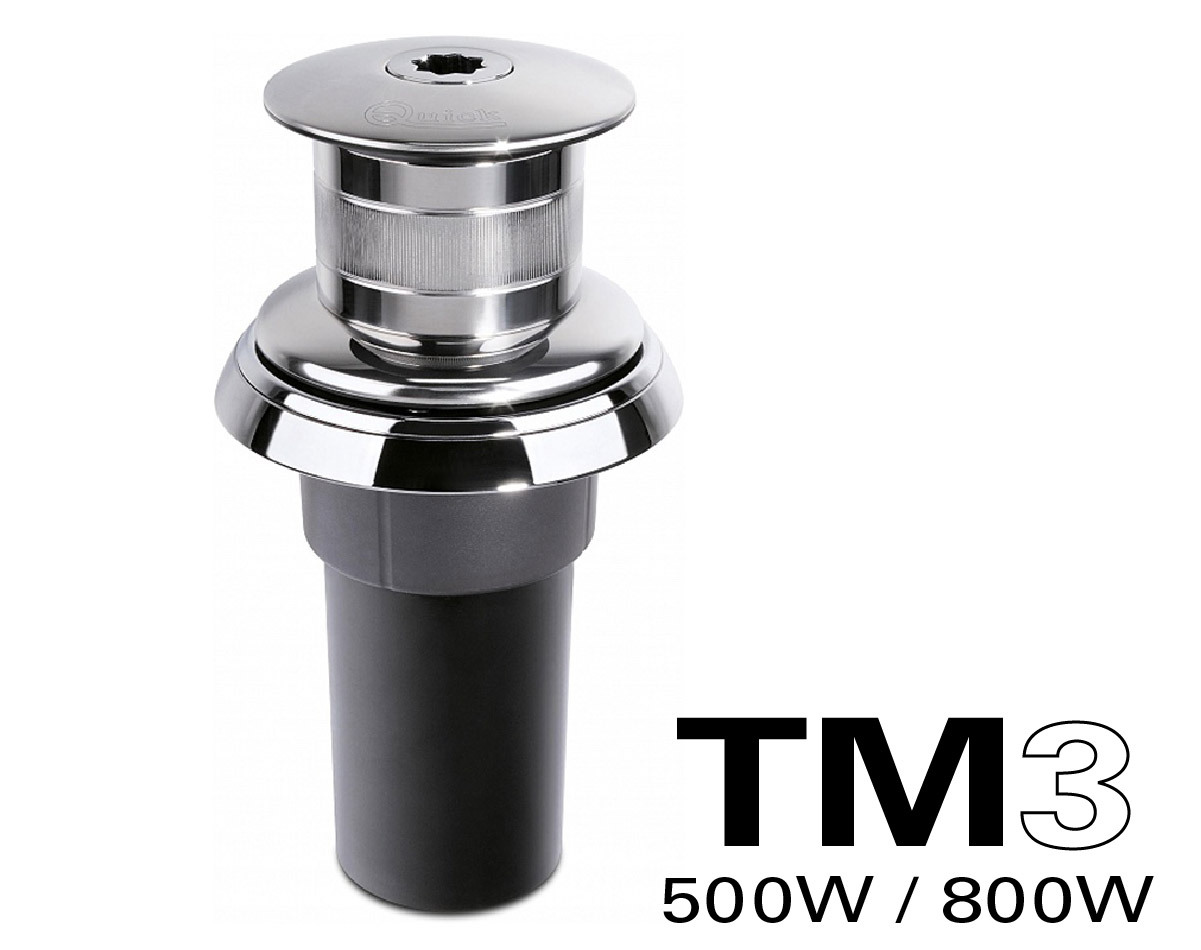

The TM3 500W capstan is suitable for boats from 8m to 12m (26-40ft).
The TM3 800W 12V capstan is suitable for boats from 11m to 14m (36-46ft).
The TM3 800W 24V capstan is suitable for boats from 11m to 18m (36-59ft).
Features:
Included in the package:
Accessories (not included) - must be purchased separately:
Model | TM3 600 | TM3 1000 | |
---|---|---|---|
Watts | 500W | 800W | |
Voltage | 12V | 12V | 24V |
Amps | 40A | 80A | 40A |
Drum Diameter | 130mm | 130mm | |
Max. Pull | 620kg | 820kg | |
Max. Working Load | 200kg | 290kg | |
Working Load | 65kg | 95kg | |
Max. Speed | 22.5m/min | 25.8m/min | |
Max. speed @ working load | 16.3m/min | 16.8m/min | |
Weight | 8.1kg | 8.1kg | |

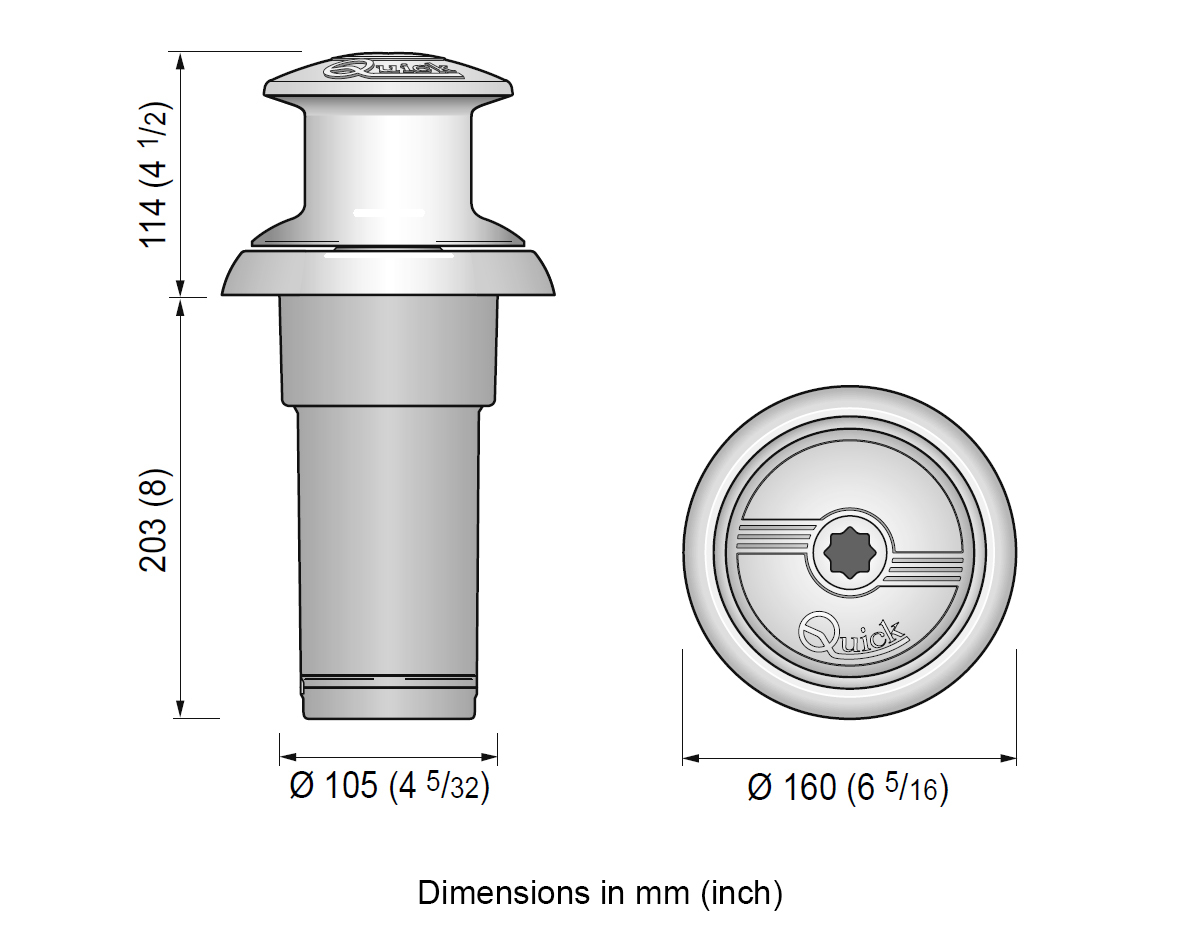

Deck Thickness | 20 - 30mm | 20 - 30mm | |
Suggested Boat Size | 8 - 12m | 11 - 14m | 11 - 18m |
Why choose a Quick Anchor Winch?
Quick windlasses are equipped (as standard) with exclusive solutions and devices to ensure safety and functionality in all conditions. Each component has been designed in the company’s Italian engineering laboratories. The wide range of equipment for all kinds of mechanical processing enables Quick to obtain high-quality and directly-controlled products.
How do I calculate what motor power I need?
Please see the table above for the factors to consider when selecting which motor power would best suit your vessel, anchor and anchor rode combination.
Protection from Water:
The motor includes a flexible PVC gasket which should be installed on the flange of the below-deck gearbox. This gasket is well suited to any surface and effectively protects the gearbox against water infiltration without further intervention being required.
The casing is made of composite material, with gaskets and sealed cable outlets for electric cables. As well as preventing infiltration of water or other liquids, it also delivers high impact resistance and ease of installation.
Metals used in the Base:
