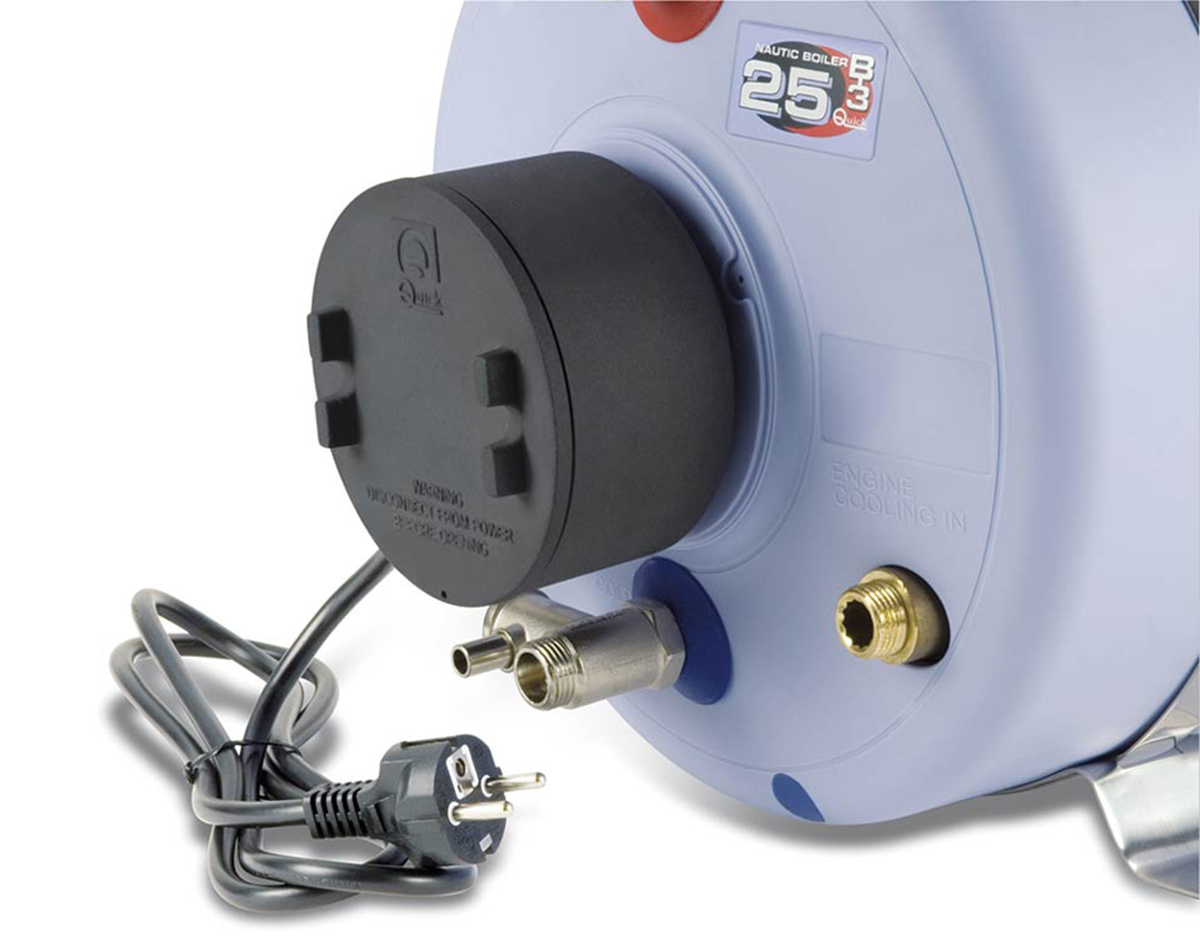

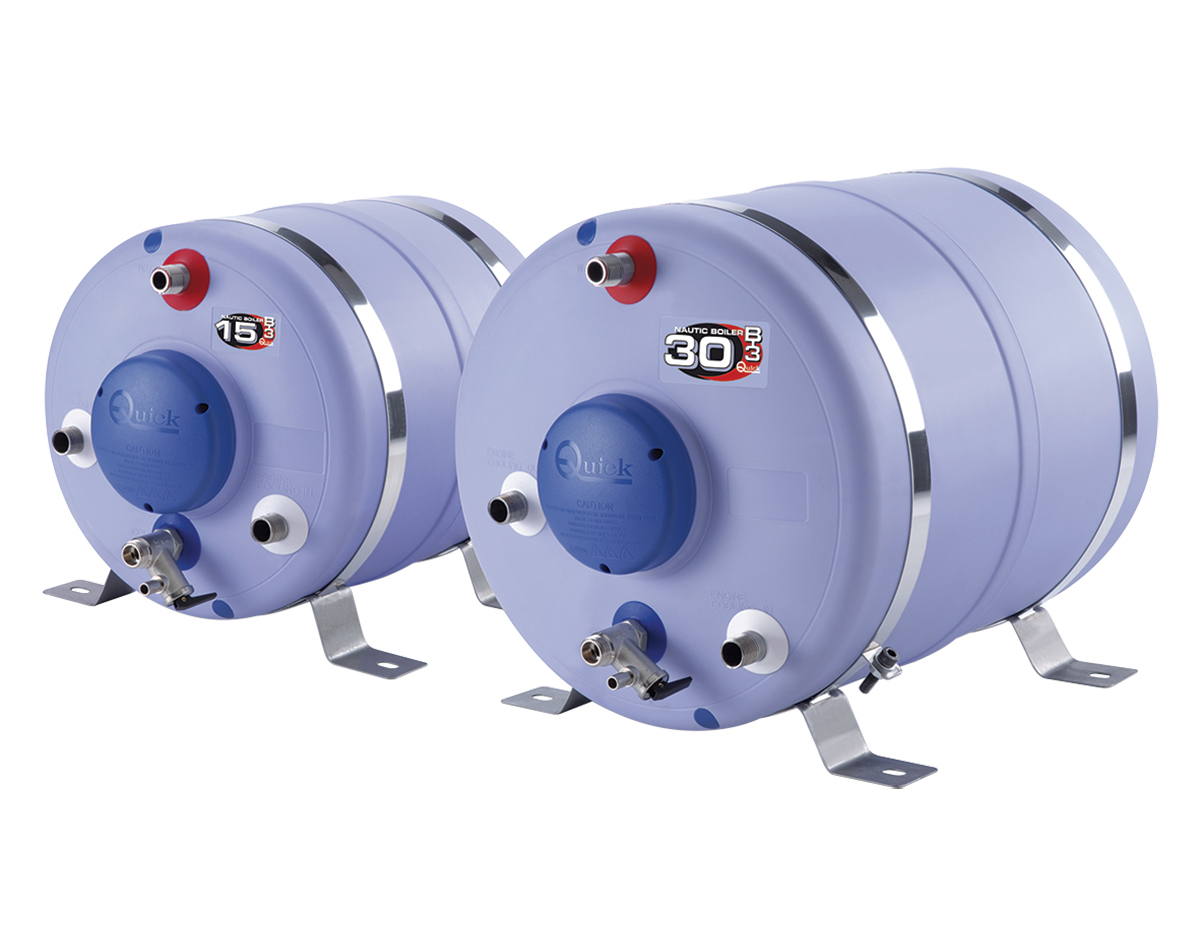

B3 Nautic Boiler Water Heaters

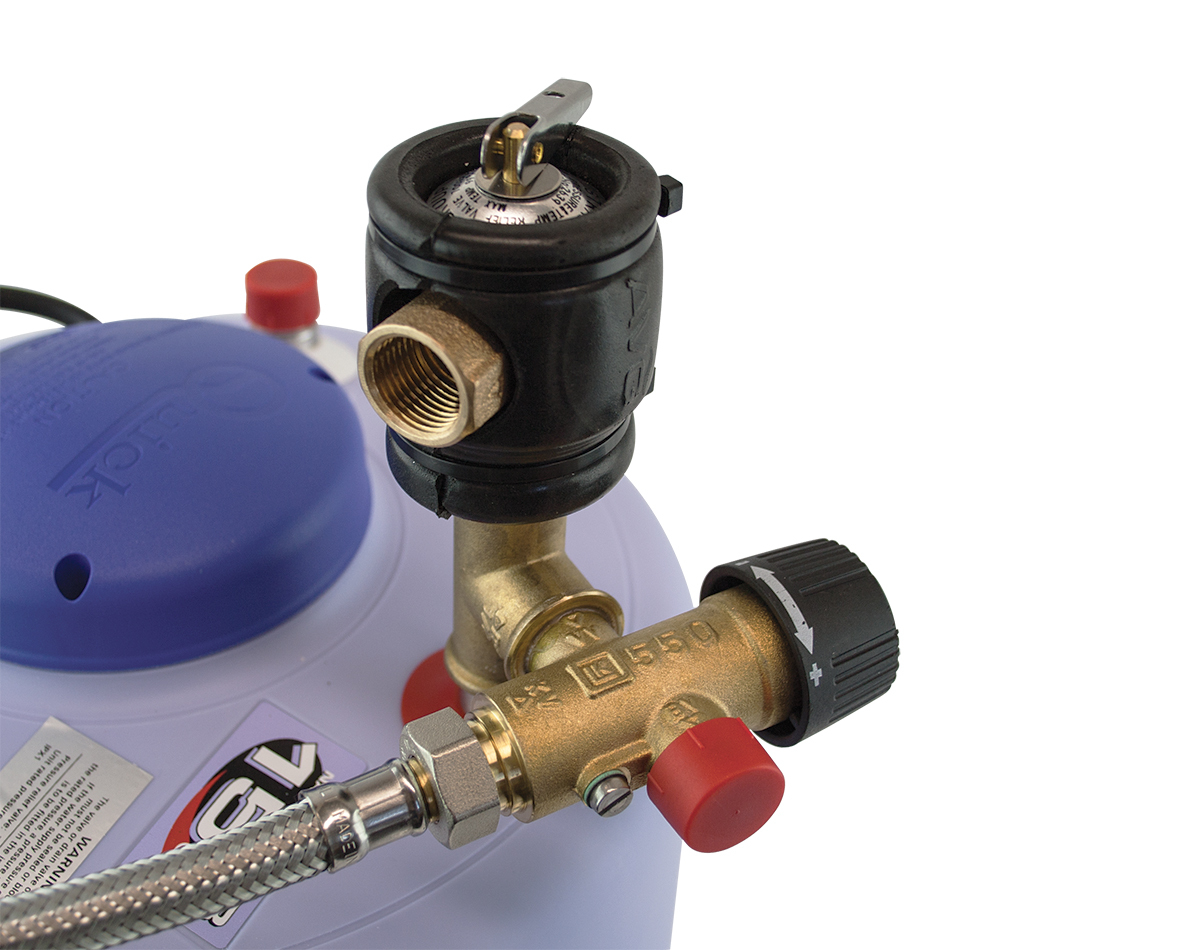

Australian compliant pressure/temperature relief valve and thermostatic mixing valve.
Anti-flare protection

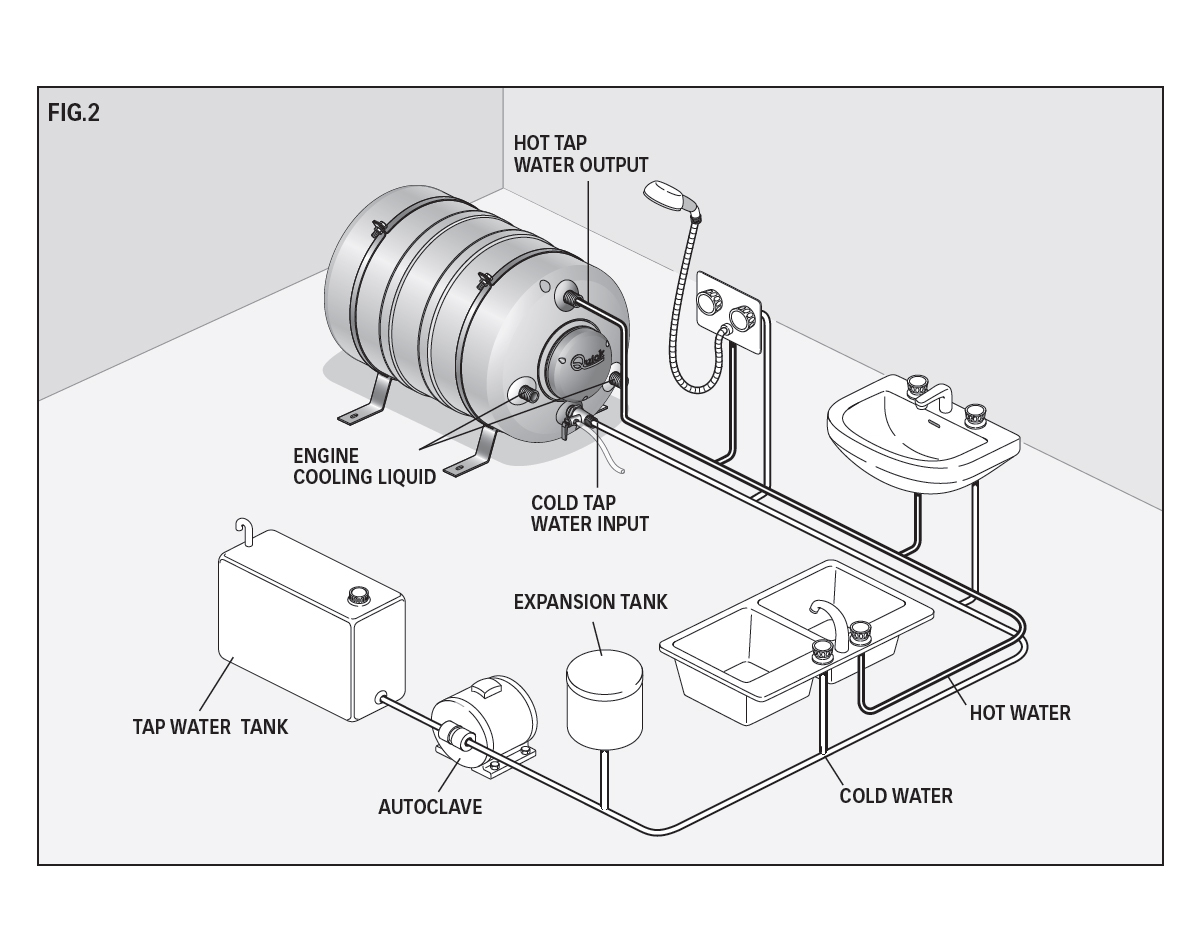

Connection diagram

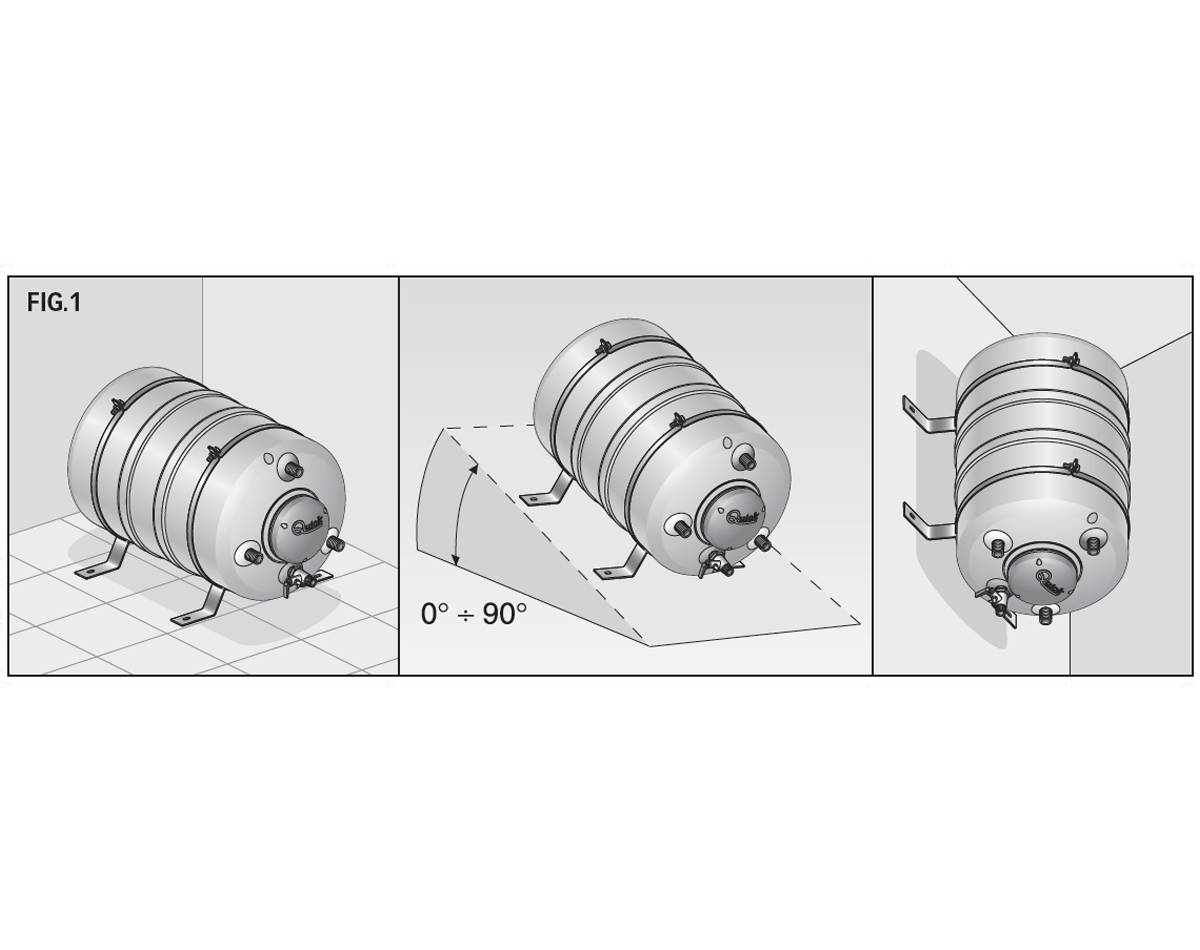

Installation examples
High quality heat exchanger with wide exchange surface. Produces hot water from the electric element, that is fitted with an adjustable bi-thermostat.
The 15L, 20L and 25L waterheaters are available with either 500W or 1300W heating element, the other larger capacities are supplied with a 1300W heating element.
The heat exchanger of the Quick B3 Nautic Boiler is made of 316-grade stainless steel. The tank itself is 1.5mm thick, and welded in a protected atmosphere of Argon gas, making it particularly resistant to corrosive agents.
Thermal insulation is assured by a high-density polyurethane foam with closed cells, providing better and longer-lasting thermal retention.
The heat exchanger has a capacity that is notably higher than that achieved from other manufacturers.
The heating element is made of Incoloy®, a nickel-based superalloy that has ,excellent corrosion-resistance and withstands high temperatures.
The thermal insulation is high-density polyurethane foam injected between the cover and tank to give excellent heat-retention properties.
Product Features:
| Tank Material | Stainless Steel |
|---|---|
| Thermal Insulator | Polyurethane Foam |
| External Cladding Material | Composite |
| Tank Pressure (Running Test) | 800kPa* |
| Maximum Working Pressure | 600kPa* |
| Electric Element Voltage Rating | 220 Vac ± 10% |
| Electric Element Power | 500W or 1300W |
| Output Diameter | 1/2" |
*1 Bar = 100 kPa
| Capacity (L) | Dimensions (mm) (Dia x L) |
Weight (kg) |
Heating Element (W) |
|---|---|---|---|
| 15 | 300 x 405 + 115 | 7.0 | 500 or 1300 |
| 20 | 300 x 500 + 115 | 8.1 | 500 or 1300 |
| 25 | 300 x 605 + 115 | 8.5 | 500 or 1300 |
| 30 | 360 x 495 + 115 | 10.5 | 1300 |
| 40 | 360 x 620 + 115 | 11.7 | 1300 |
| 60 | 400 x 721 + 115 | 14.6 | 1300 |
| 80 | 400 x 921 + 115 | 17.8 | 1300 |
