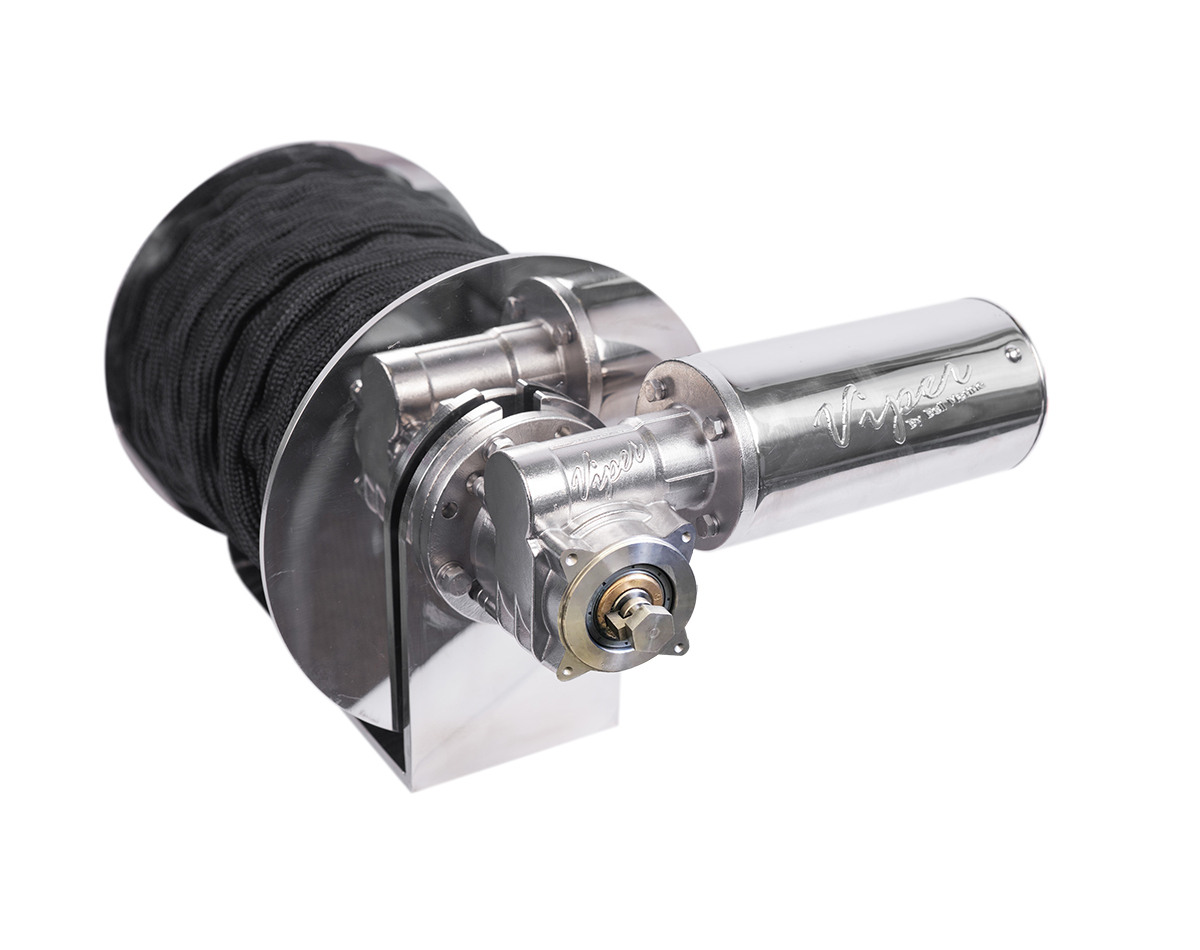

Viper Pro S Series Rapid Drum Anchor Winch Bundle

The Viper Pro S Series Anchor Winch features an all-stainless steel construction with a fall rate of 50 meters per minute and retrieval rate of over 45 meters per minute to ensure you get onto your GPS mark, first time, every time!

The Viper 1000W submersible electric motor (hand polished marine 316 grade stainless steel) and the powerful 316-grade stainless steel worm drive gear box has been pressure tested and sealed, making the Viper winches some of the best selling anchor winches in Australia.

With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 28mm one piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards.

With a life time warranty against water intrusion, and a bullet proof 5-year Viper performance warranty, you can’t go past a Viper.

Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included. All you have to add is your own cabling or tinned copper marine wiring looms (see related products), and you will never have to break your back pulling up your anchor and chain again!

Please note: 1m of 3B&S cables is already attached to the motor and leak tested, so there is no need to remove end caps that are not sealed properly!

Product Features:

28mm solid stainless steel shaft with 3 support bearings
1000W submersible stainless steel electric motor
8mm marine grade 316-grade stainless steel plate, hand polished to a mirror finish
316-grade stainless steel marine worm drive gear box
360 Degree motor rotation with 16 different positions
Max fall rate: 50m per minute
Max retrieval rate: 45m per minute
Suit vessel length: 5.7m +
Weight: 17 kgs (winch only)

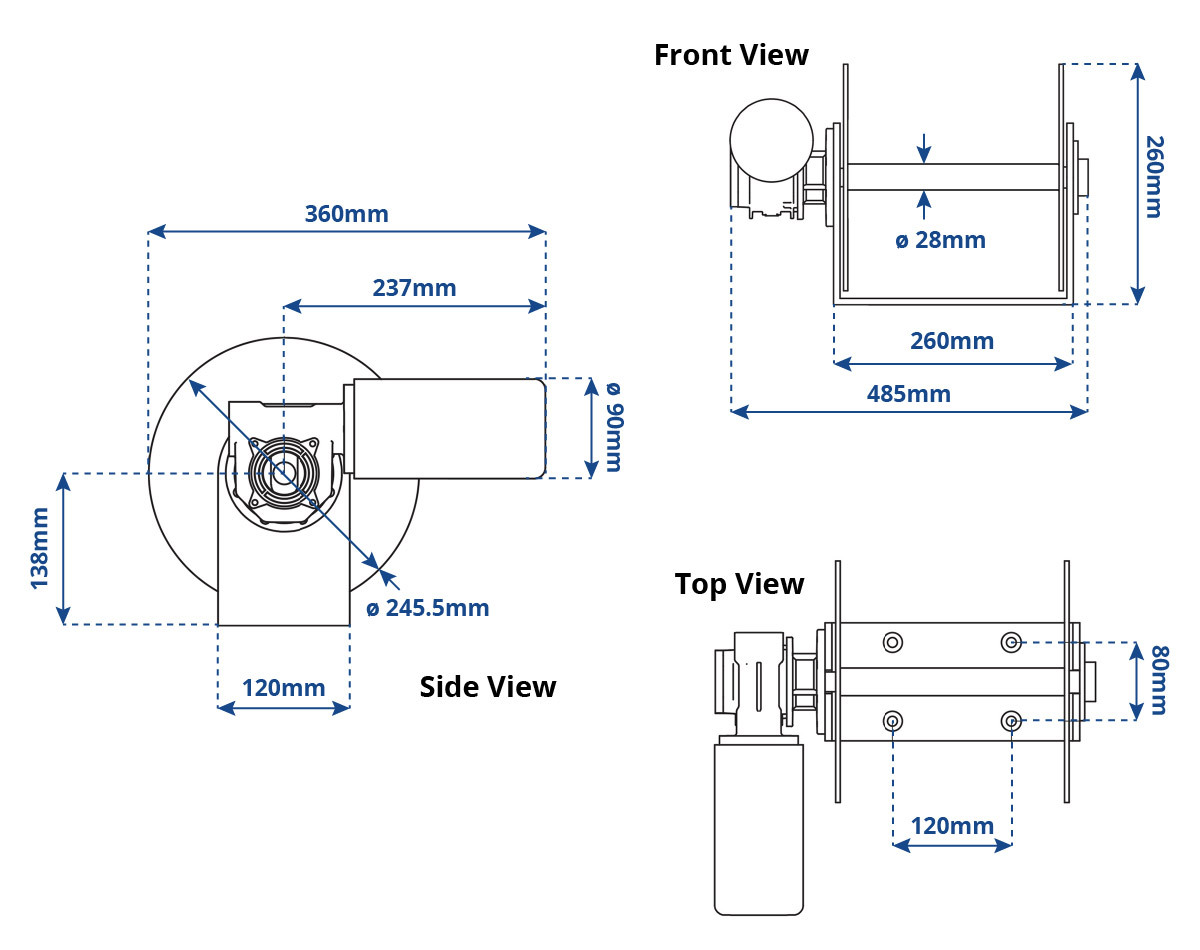

Well clearance required: 395mm (W) x 410mm (D) x 260mm (H)
Motor water protection rating: IP68
5 year warranty

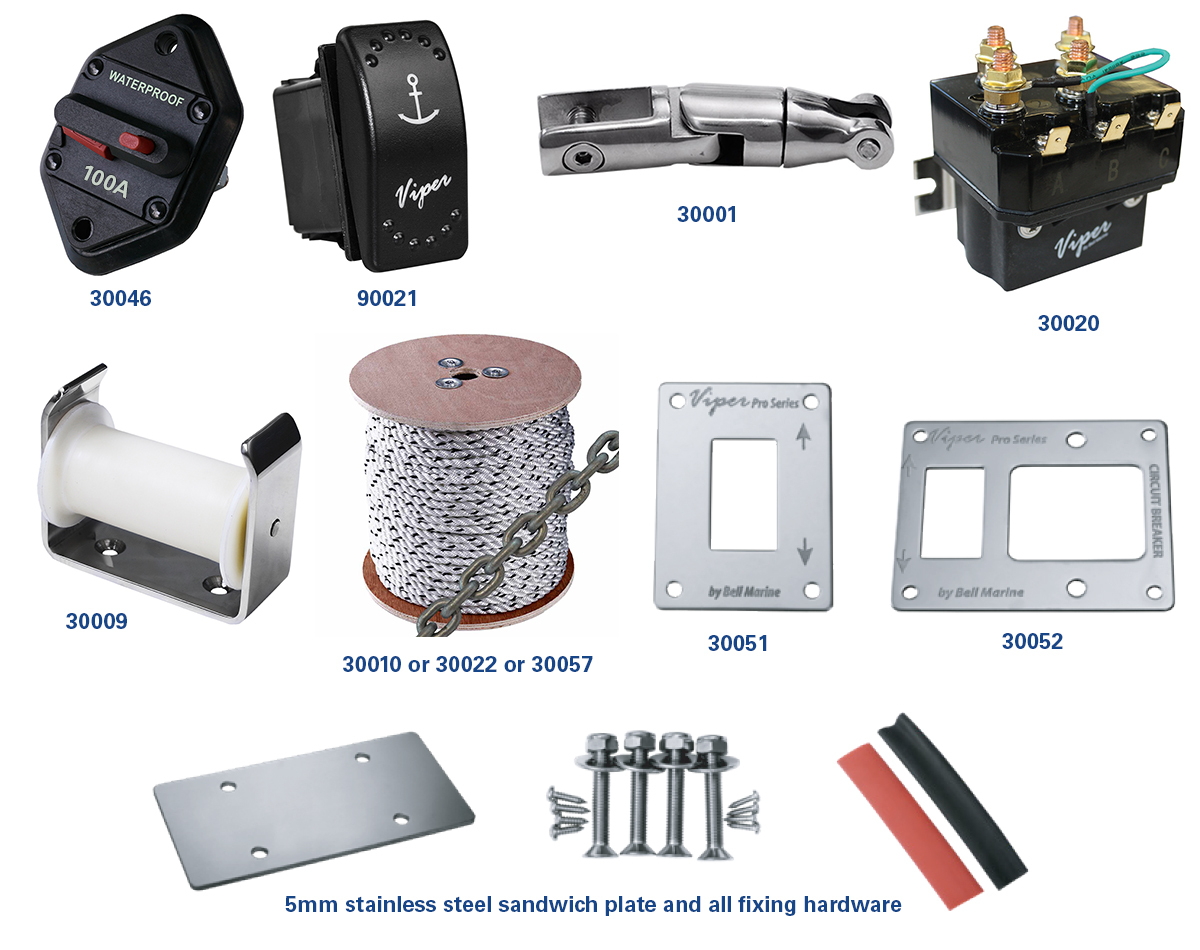

Kit Bundle Includes:

1x Viper Pro S-series 1000 Rapid Winch
Choice of rope kits:
- 75m x 8mm 3 Strand Premium rope
- 100m x 6mm Double Braid rope
- 200m x 5mm 12 Plait Uhmwpe Hi Spec 3000 rope
  - Hi-Spec rope kit also includes: 10m x 8mm 3 Strand Polyester shock cord spiced at both ends
8m x 6mm Galvanised short link anchor chain
1x Viper pro series anchor swivel - small
1x Viper deluxe anchor roller - small
1m 3 B&S power leads and joining connectors - pressure tested and sealed
200amp reversing solenoid
LED illuminated marine rocker switch
Viper laser etched led illuminated switch cover
100 amp flush mount circuit breaker with rubber seal
Single LED switch stainless steel face plate
Combo LED switch & circuit breaker S/S face plate
5mm stainless steel sandwich plate
All fixing hardware
Installation notes & wiring diagram

Please note: If fitting to a aluminium boat, you will require the Viper Pro Aluminium Boat Fitment Kit [SKU: 1010541] to protect from the effects of electrolysis - sold separately see related products.

SKU	Rope	Shock Cord	Chain	Breaking Strain
1010515	75m x 8mm (3 Strand Nylon Premium)	- none -	8m x 6mm (Galvanised Short Link)	1,000 kg
1010517	100m x 6mm (Double Braid Premium)	- none -	8m x 6mm (Galvanised Short Link)	1,000 kg
1010519	200m x 5mm (Hi-Spec 3000)	10m x 8mm (3 Strand Polyester)	8m x 6mm (Galvanised Short Link)	2,050 kg
