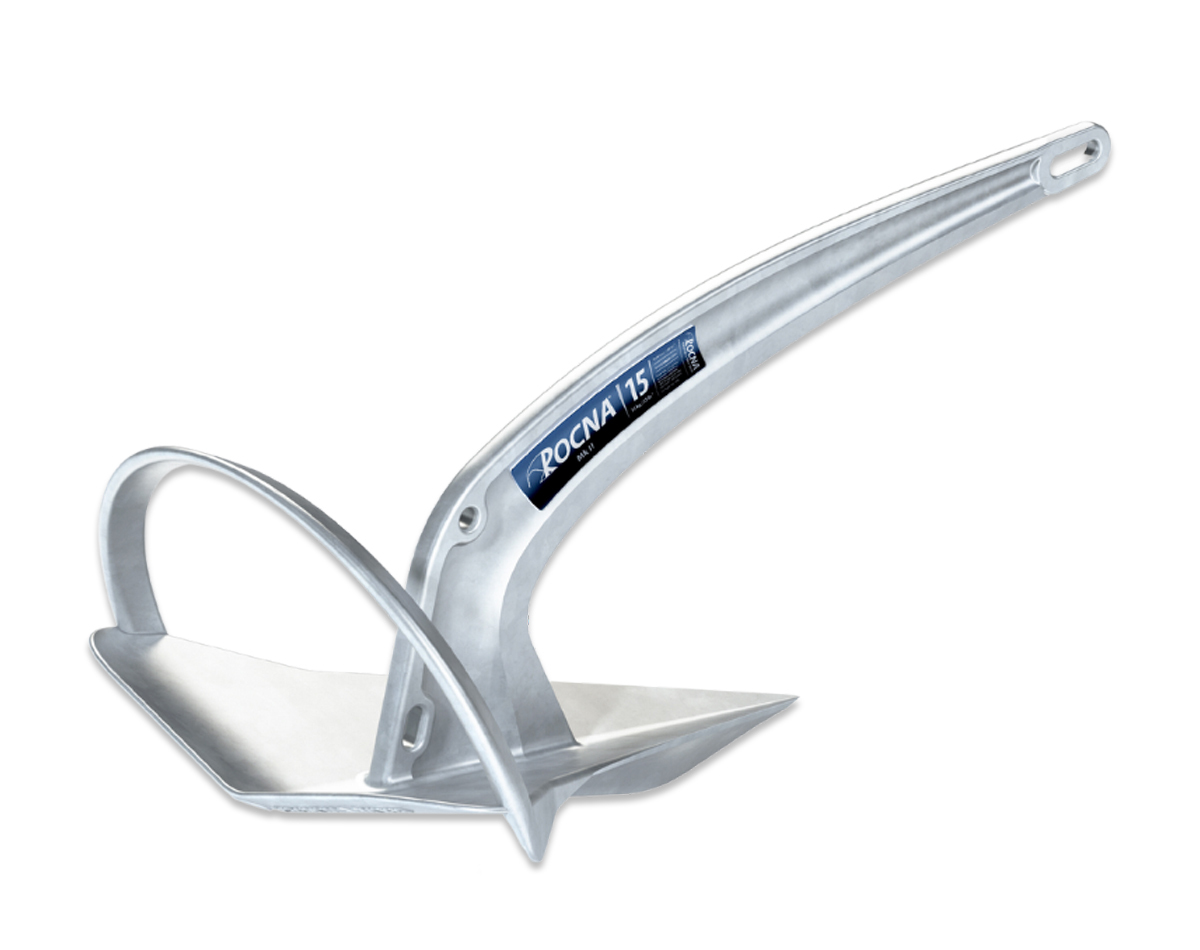

Rocna MKII Anchor Galvanised

ROCNA Mk II: Perfecting the ideal / The inheritance of excellence / Pushing out the boundaries.

The latest Rocna Mk II anchor is the first major improvement since the launch of the highly successful and acclaimed Rocna Original. After years of careful testing and refinement, and exploiting innovations also found in the well-received Vulcan® anchor, the designer (New Zealand sailor Peter Smith) has honed the ultimate Rocna anchor: the Mk II.

An idealized form of the Rocna design, the Rocna Mk II is based on the same proven design pattern, but refines every element close to perfection.

The Rocna Mk II brings substantial upgrades in performance and strength by way of revision and refinement – inheriting and uprating the original’s proven performance advantages for an extremely quick and reliable set across a range of seabeds, with rock solid holding power.

Product Features:

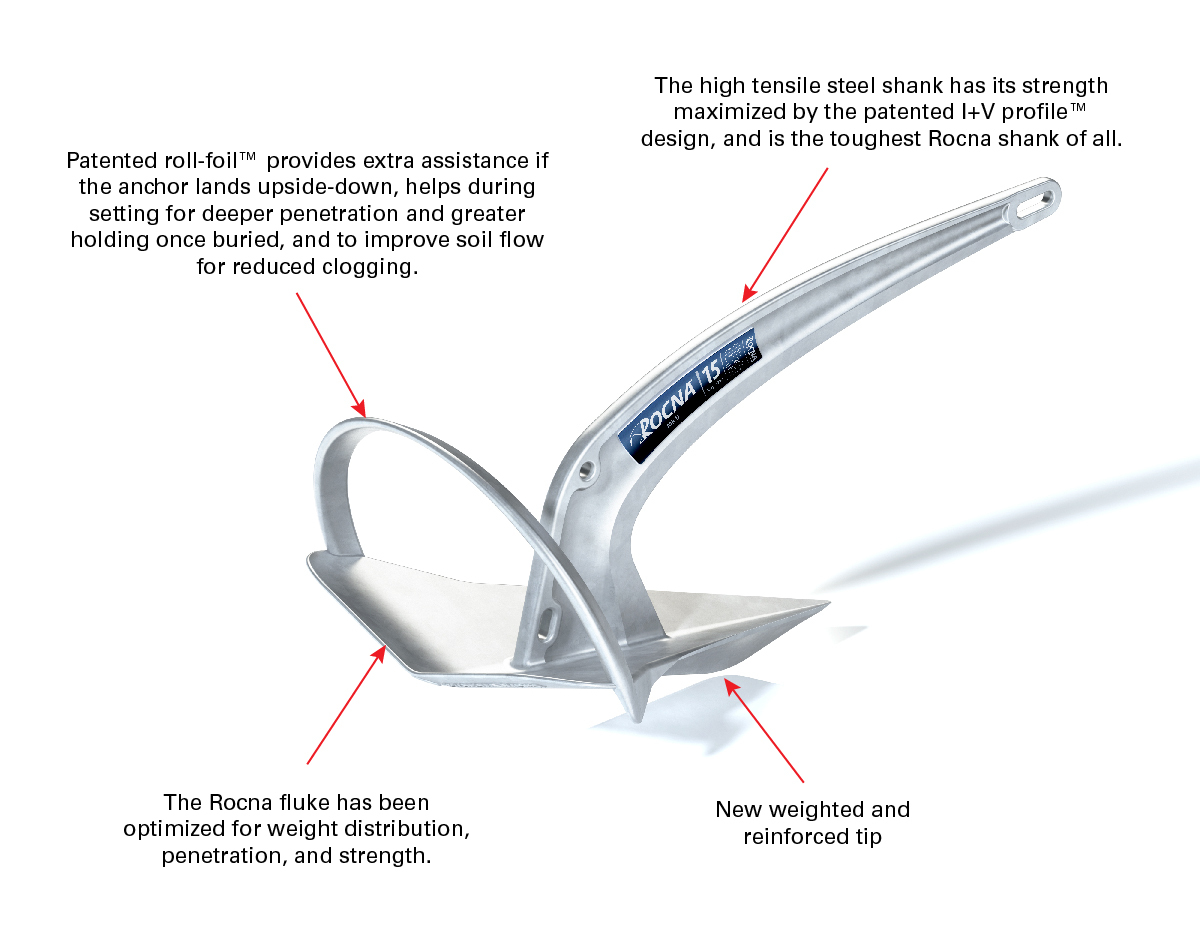

SHANK: Working with high tensile steel, the Rocna Mk II shank is further strengthened by Rocna’s patented I+V profile™ design. This computer optimized I-beam geometry brings higher resistance to bending, and further improves setting performance as the lower V-edge cuts into the seabed. This helps the anchor penetrate more easily to a deep and secure burial.
ROLL-FOIL: The Rocna roll-bar has been sculpted into the patented roll-foil™ providing even surer self-righting for the most reliable set. The roll-foil’s sections vary in profile, each designed for its own dynamic role: to provide extra assistance if the anchor lands upside-down, to help during setting for deeper penetration and greater holding once buried, and to improve soil flow for reduced clogging.
FLUKE: The Rocna fluke has been optimized for weight distribution, penetration, and strength. It enjoys a new weighted and reinforced tip. Steel moved from where it is extraneous, to where it aids. The tried and true Rocna fluke is increased in surface area, for a substantial boost in holding power. And all attained with no trade-offs.

CHOOSE THE ROCNA Mk II: For ultimate performance and maximized safety, the Rocna Mk II is the world’s premier anchoring investment. Designed and built without compromise, it’s rock solid.

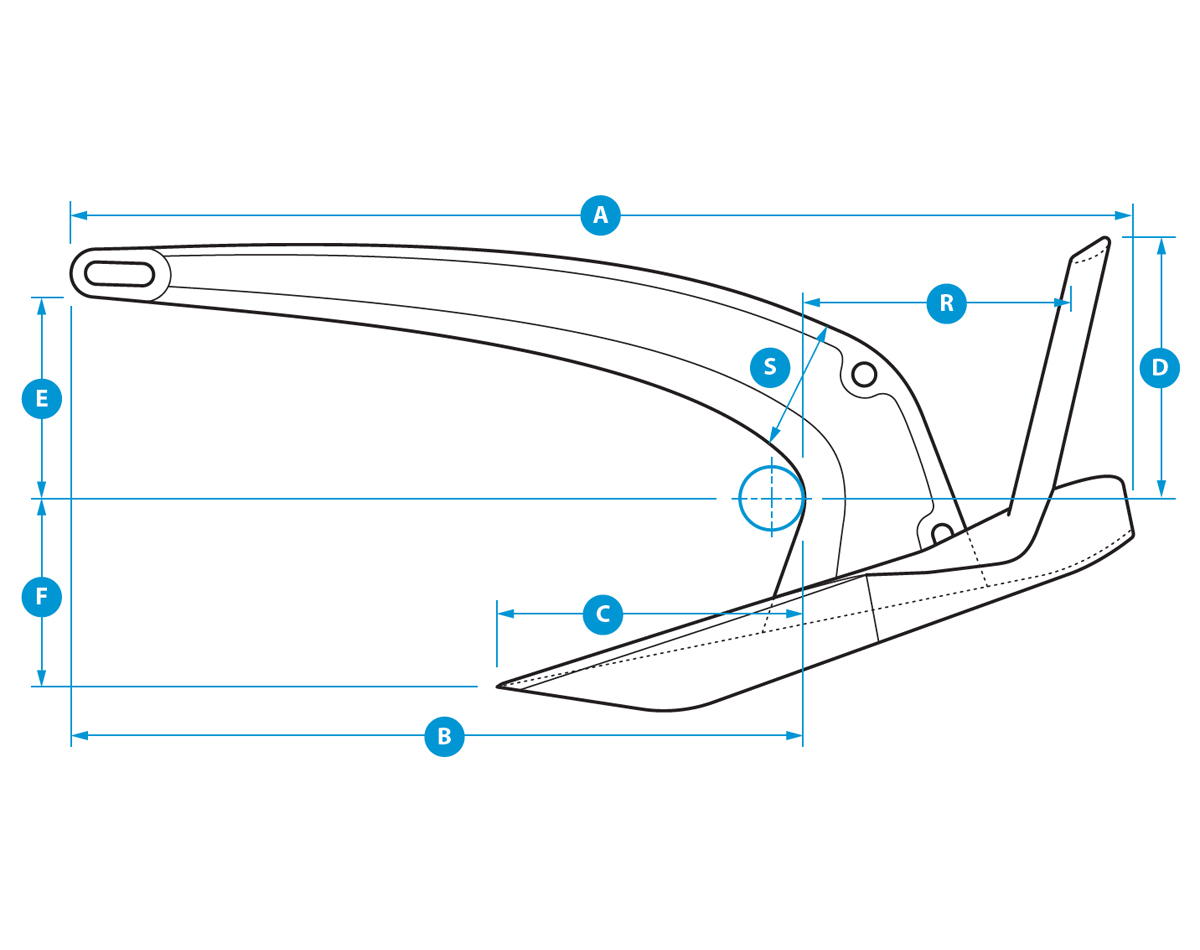

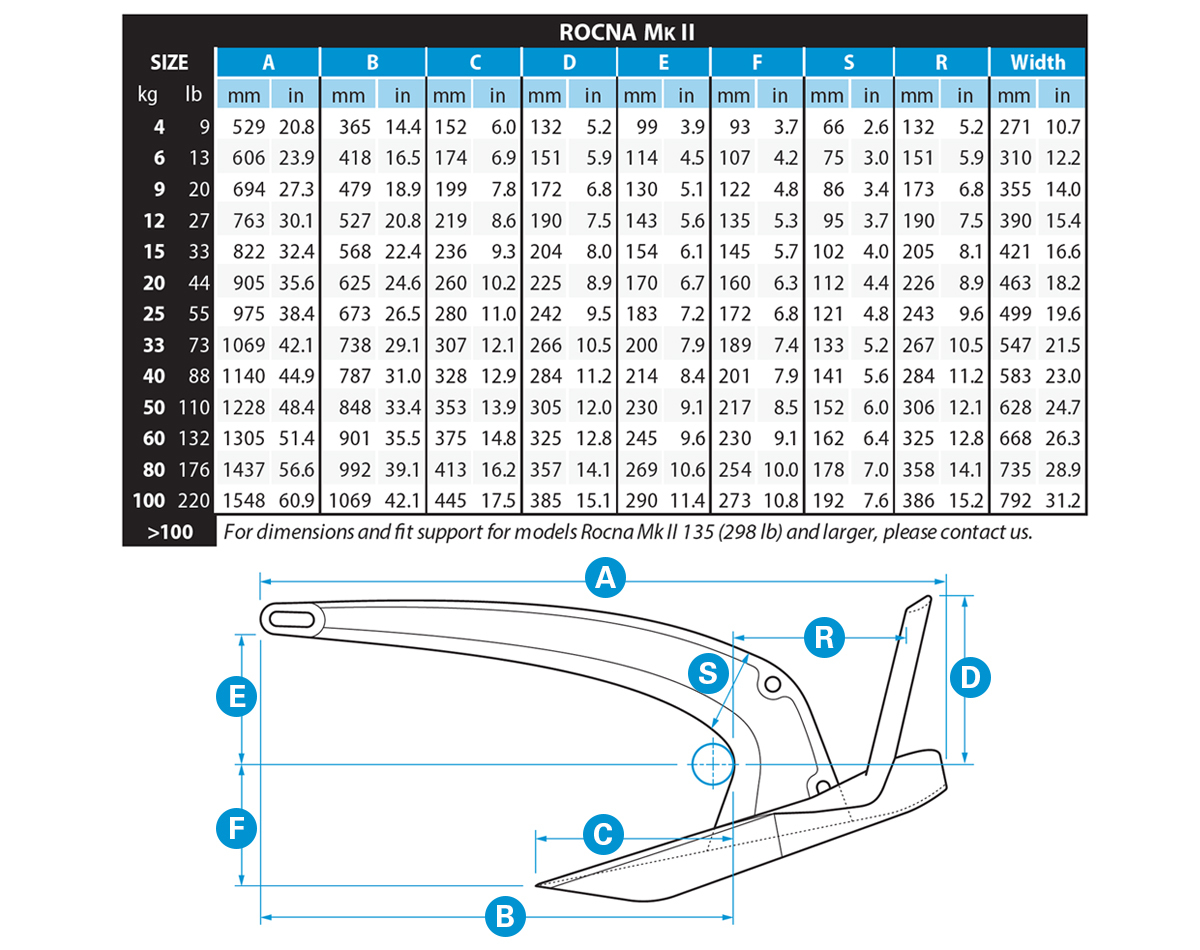

SKU	Sugg. Boat Size (m)	Anchor Size		Dimensions (mm) - see diagram within images
SKU	Sugg. Boat Size (m)	Anchor Size		A	B	C	D	E	F	S	R	Width
1000171	4-7	9lb	4kg	529	365	152	132	99	93	66	132	271
1000172	5 - 9	13lb	6kg	606	418	174	151	114	107	75	151	310
1000173	6-11	20lb	9kg	694	479	199	172	130	122	86	173	355
1000174	7-12	27lb	12kg	763	527	219	190	143	135	95	193	390
1000175	8-14	33lb	15kg	822	568	236	204	154	145	102	205	421
1000176	9-16	44lb	20kg	905	625	260	225	170	160	112	226	463
1000177	10-18	55lb	25kg	975	673	280	242	183	172	121	243	499
1000178	12-22	73lb	33kg	1069	738	307	266	200	189	133	267	547
1000179	14-24	88lb	40kg	1140	787	328	284	214	201	141	284	583
1000180	16-26	110lb	50kg	1228	848	353	305	230	217	152	306	628
