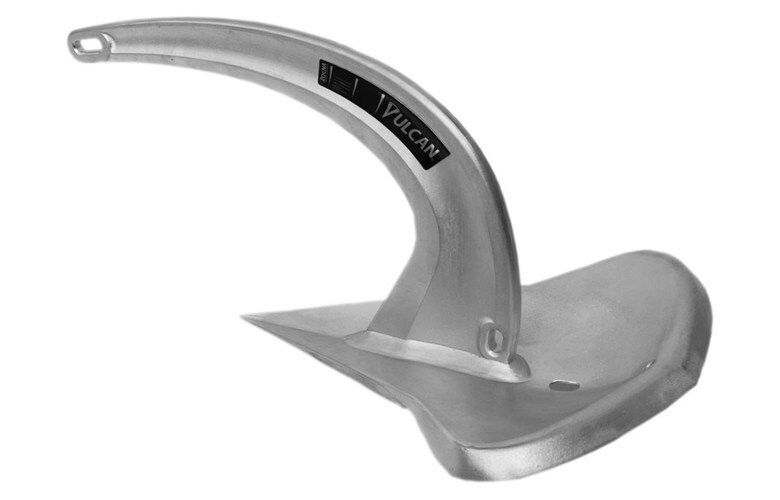

The Vulcan is Rocna’s first major design development since the launch of the highly successful and acclaimed Rocna anchor itself.

It features a unique combination of shank and fluke geometry – including an innovative roll-palm at the rear of the fluke, which self-rights the anchor on the seabed without the use of a roll-bar.

This is assisted by the V-bulb that extends fluke ballast downward to gain maximum leverage and efficiency.

This development permits a larger fluke surface area than competing designs which rely on simple dead weight, while the concave fluke allows for more holding power and security.

The shank profile ensures a snug fit on the bows of a widely expanded range of vessels; platforms, bowsprits, prods, stays, and other protrusions are easily cleared with no hassle or inconvenience.

The Vulcan’s shank shape encourages self-launching and self-stowing upon retrieval on the majority of bow rollers, with a liquid smooth action, ensuring ease of use for all operators.

This visually elegant innovation also improves setting performance, with the lower V edge cutting into the seabed and minimizing resistance to a deep and secure burial.

Vulcan anchors are available in 10 sizes from 4 kg (9 lb) – 55 kg (121 lb) to suit vessels from small runabouts to larger launches.

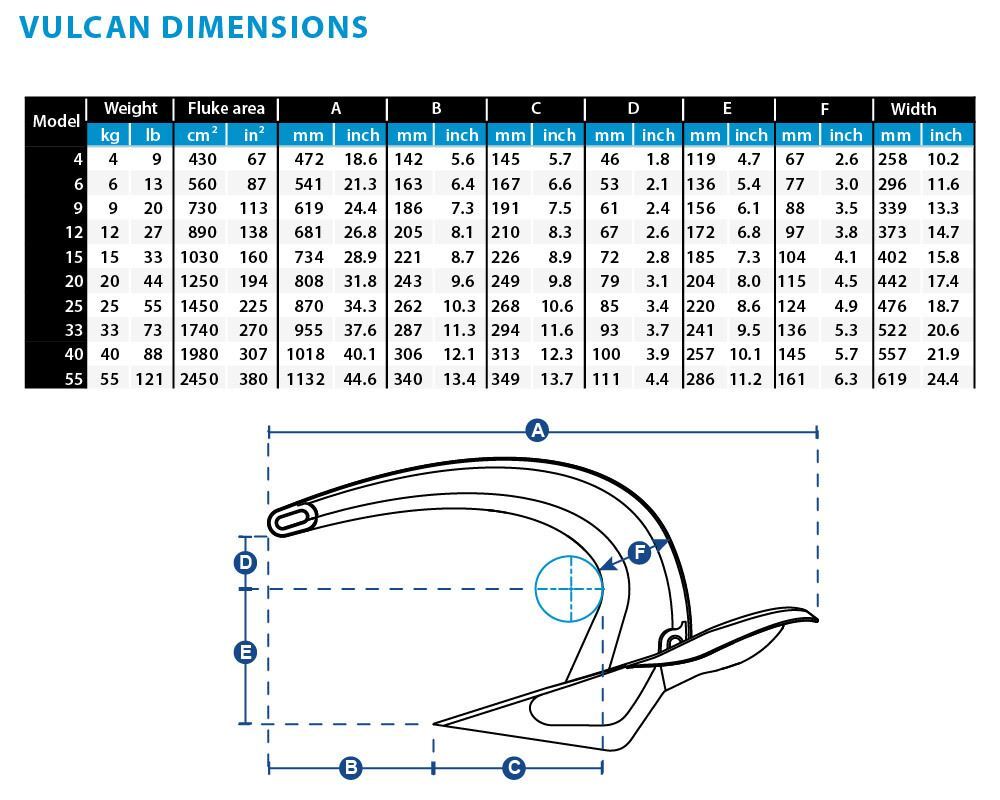

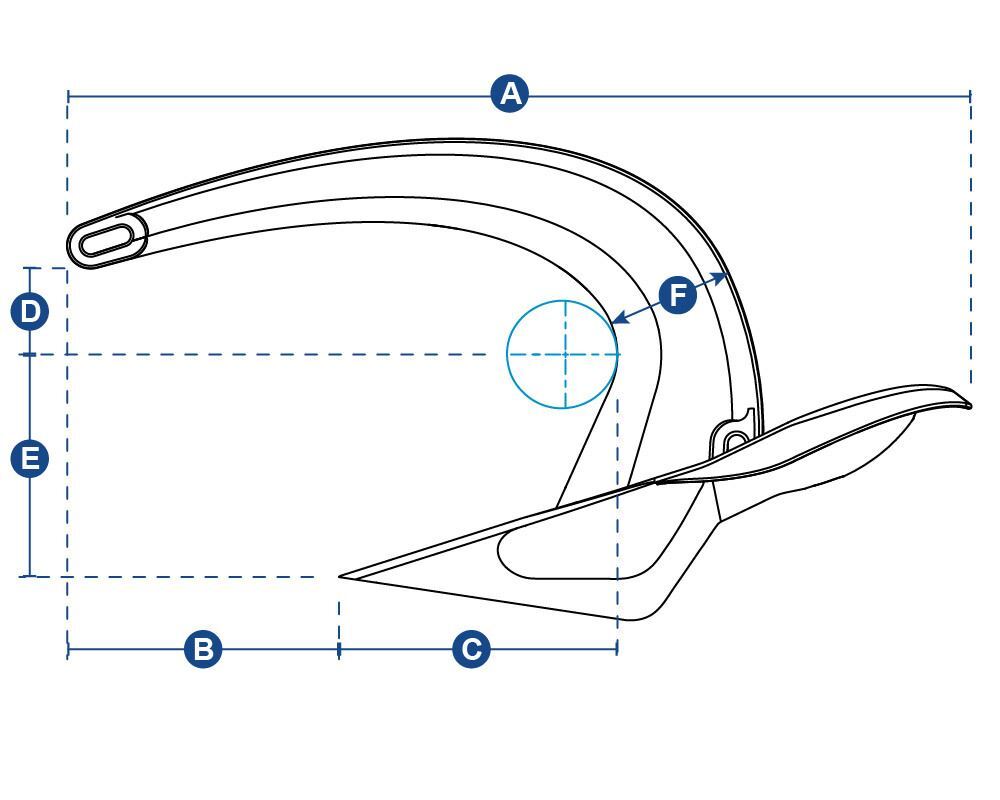

	Suggested	Anchor Size		Dimensions - see diagram within images (mm)
SKU	Boat Size (m)	(lb)	(kg)	A	B	C	D	E	F	Width
1000314	4 - 7	9	4	472	142	145	46	119	67	258
1000315	5 - 9	13	6	541	163	167	53	136	77	296
1000316	6 - 10	20	9	619	186	191	61	156	88	339
1000317	7 - 12	27	12	681	205	210	67	172	97	373
1000318	8 - 14	33	15	734	221	226	72	185	104	402
1000319	9 - 16	44	20	808	243	249	79	204	115	442
1000320	10 - 18	55	25	870	262	268	85	220	124	476
1000321	12 - 22	73	33	955	287	294	93	241	136	522
1000322	14 - 24	88	40	1018	306	313	100	257	145	557
1000323	16 - 26	121	55	1132	340	349	111	286	161	619

Freight costs are calculated by order weight and postcode, and charges may be subject to change.

To view shipping rates and delivery times, add the items you want to purchase into your cart. Then click on "View Cart" or "Checkout", enter your postcode/select your suburb, and our shipping calculator will work this out for you (within Australia only).

During November, December, January & February (peak season / summer months / Xmas time) we unfortunately cannot guarantee delivery will arrive within our usual expected times and some delays may occur due to the increased amount of deliveries our carriers receive over this busy period.

Express Shipping (via Air) - usually arrives within 2-4 days

Express shipping will be offered for items under a certain length and/or weight and will display during the checkout process, if applicable for your order.
Orders placed after noon will be shipped the next business day (excluding weekends and WA public holidays).
Heavy/oversize items, hazardous items or items that include liquid do not qualify for Express Delivery because they cannot be sent via air.

Standard Shipping (via Road) - usually arrives within 5-9 days

Most small orders will be shipped by Startrack or Australia Post if the order fits within its weight/dimensions guidelines. Larger orders are shipped using the most economical options from one of our other transport partners.

We usually dispatch your order within 24 hours of receiving confirmation of payment (excluding weekends and public holidays).

FREE Standard Shipping (via Road) - usually arrives within 5-9 days

Free Standard Shipping is available for orders over $250, of certain products, and will be applied automatically as a discount code during checkout.

This offer EXCLUDES dangerous goods, over-sized items, items requiring special packaging and items that are shipped from our suppliers, as they incur a freight surcharge from our carriers. Icons showing whether an item falls into one or more of these categories are visible on the product detail page of affected products.

The free shipping offer also excludes any orders shipped to the Northern Territory or Offshore Islands.

Shipping Insurance - Not included in our FREE Standard Shipping Offer

Shipping insurance covers any order lost or damaged during transit (if selected during checkout). The cost of insurance is based on a small percentage of your order value. Shipping insurance will not cover orders that have been delivered and given authority to leave, but have gone missing.

New Zealand International Shipping - usually arrives within 5-12 days

Shipping to New Zealand will be offered for items under a certain length and/or weight and will display during the checkout process, if applicable for your order.

International Orders - delivery time varies

International orders cannot be processed through our shopping cart online, as yet. To place an international order, please contact our customer service team to obtain a quote including shipping.

Delivery to PO BOXES

Oversized products, dangerous goods, some various other items that require special packaging cannot be shipped to PO Boxes. You will not see a shipping option if your cart contains these items and you have entered a PO box in the shipping address field. Either change your shipping address to a physical address or contact us to provide a quote for shipping your items to a PO box.

See our delivery page for further information.

Rocna Brochure 2023

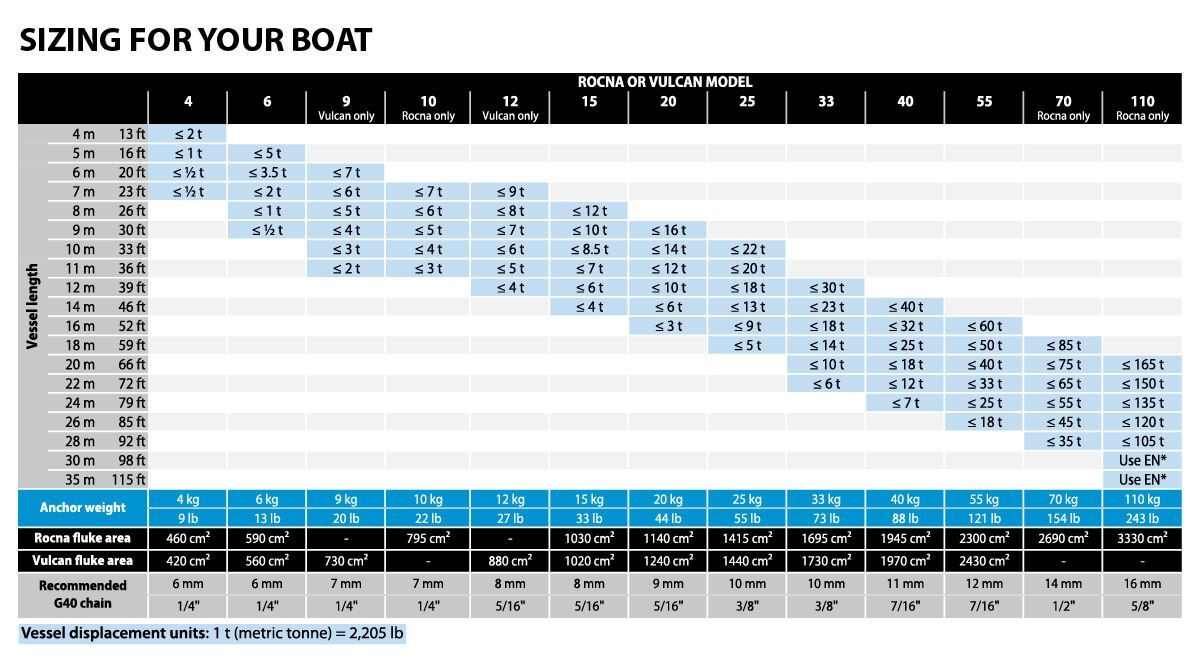

Rocna Sizing Guide

Rocna Dimensions

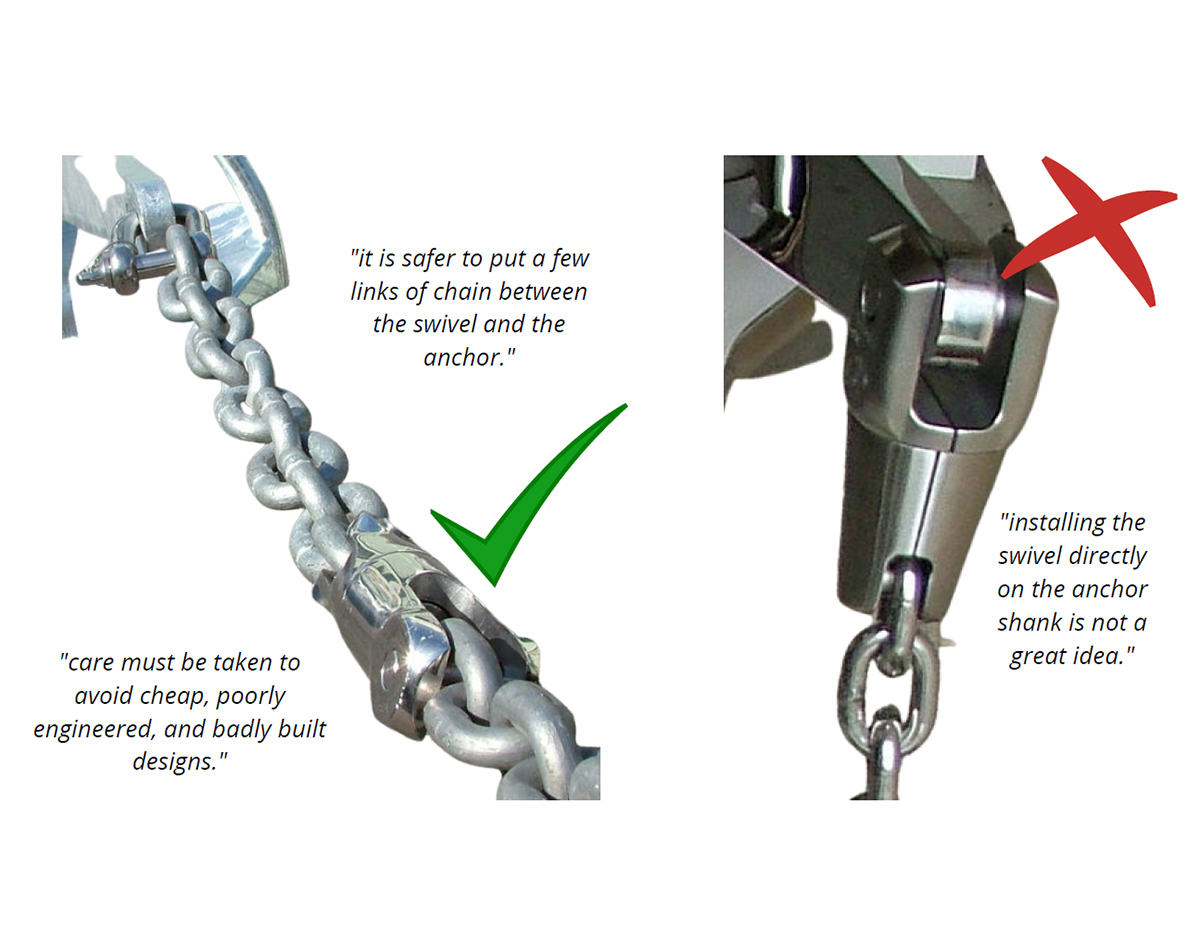

Anchor Swivel Guide
